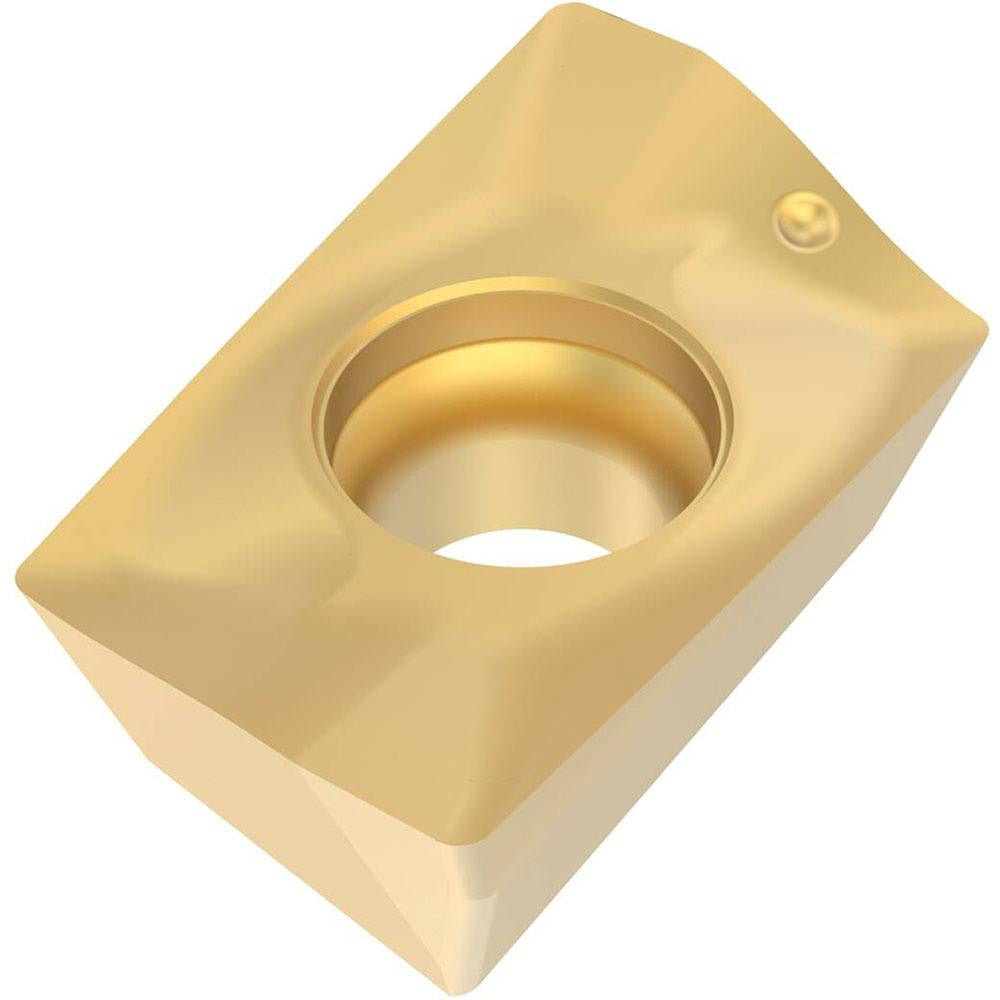

Seco 00098804 Milling Insert XOEX120431R-M07 F40M Carbide

Product Description

The SECO 00098804 is a solid carbide milling insert carrying the ANSI and ISO designation XOEX120431R-M07 in manufacturer grade F40M. This single-sided, right-hand parallelogram insert features a TiAlN and TiN dual-layer coating applied via PVD process, a positive rake geometry with a 15-degree rake angle, and a honed cutting edge style. With two cutting edges and a corner radius of 0.122 inches, it is engineered for high-performance milling in demanding material applications. It seats via screw-holding method and is designed for use in compatible SECO cutter bodies. Licensed machinists and CNC tooling specialists are the primary installers of this insert type.

This insert is suited for milling steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium, covering ISO material codes P, K, S, and N. The M07 chip breaker geometry supports controlled chip evacuation across these material groups. It is compatible with SECO cutter series R217.69-12 and R220.69-12. Typical applications include face milling, shoulder milling, and general-purpose milling operations in both production and job-shop environments on CNC machining centers.

Key Features

• Solid carbide fine-grain substrate with TiAlN and TiN PVD coating for wear and heat resistance
• Positive rake angle of 15 degrees reduces cutting forces on workpiece and spindle
• M07 chip breaker optimized for steel, cast iron, superalloys, and titanium
• Two cutting edges per insert for extended tool economy
• Maximum depth of cut and cutting edge effective length of 0.4724 inches
• Right-hand cut, screw-held parallelogram geometry for secure, repeatable seating

Compatibility

Compatible with SECO cutter series R217.69-12 and R220.69-12. This insert carries ANSI and ISO code XOEX120431R-M07 and is part of the XOEX-12 series.

Installation Notes

Installation and indexing of milling inserts should be performed by a qualified machinist or CNC tooling technician with the machine in a fully stopped, locked-out state per applicable lockout/tagout procedures. Use the correct torx or hex key as specified by the cutter body manufacturer when seating the insert screw. Inspect the insert pocket and seating surfaces for chips or debris before installing a new insert. Do not exceed the cutter body's rated maximum RPM or depth-of-cut specifications for this insert series.
