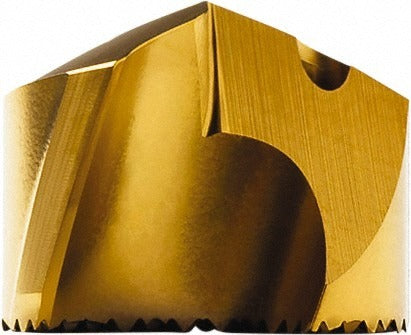

Seco 00098528 Carbide Replaceable Tip Drill 13mm SD100

Product Description

The SECO 00098528 is a carbide replaceable tip drill designed for precision hole-making in demanding metalworking applications. Built to SD100 series specifications, it features a solid carbide tip with a TiAlN (titanium aluminum nitride) PVD coating for extended wear resistance and heat management at the cutting edge. The included point angle is 140 degrees, and tip height measures 10.4mm (0.4094 inches). Through-coolant capability delivers cutting fluid directly to the cutting zone, supporting chip evacuation and thermal control during deep or high-feed drilling cycles. This drill is intended for installation by machinists and toolroom technicians working on CNC machining centers and drill presses.

The 00098528 is engineered primarily for stainless steel (ISO material group M) workpieces, where the TiAlN coating and 140-degree point geometry help manage work-hardening tendencies and reduce built-up edge. The replaceable tip design allows the carbide insert to be swapped at the machine without removing the drill body from the spindle, reducing downtime in production environments. Typical applications include aerospace, medical, and general precision machining where consistent hole quality and tool longevity are priorities.

Key Features

• Solid carbide tip with TiAlN PVD coating for heat and wear resistance
• 140-degree included point angle optimized for stainless steel entry and exit
• Through-coolant design directs fluid to the cutting zone for chip control
• Replaceable tip interface allows on-machine tip changes without body removal
• M insert geometry suited to ISO M-group stainless steel materials
• SD100 series platform for body and tip interchangeability within the series

Compatibility

Designed as an OEM-style replacement tip compatible with SECO SD100 series drill bodies accepting the M insert geometry at 13mm diameter.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Before seating or removing the replaceable tip, power down the spindle completely and follow lockout/tagout procedures per applicable shop safety standards. Use the correct torque wrench and SECO-specified clamping hardware to seat the tip; do not over-torque the clamping screw. Verify through-coolant passages are clear before resuming operation.
