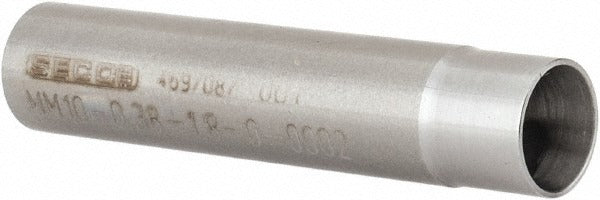

Seco 00096126 Replaceable Tip Milling Shank MM10

Product Description

The SECO 00096126 is a replaceable tip milling shank designed for use with the Minimaster MM10 toolholder system. Built to 90-degree high-speed shank geometry, it accepts interchangeable milling tips that can be swapped without removing the shank from the spindle, reducing changeover time on the machine. The shank measures 0.375 inches in diameter with a neck diameter of 0.36 inches and an overall length of 1.77 inches. A projection of 0.276 inches and a head length of 0.27 inches position the cutting tip accurately for precise milling operations. Machinists and tooling technicians working in production or job-shop environments will find this shank suited to light-to-medium milling work where quick tip changes are a priority.

This shank is intended for milling applications where the Minimaster MM10 system is already in use. It fits machine spindles accepting a 3/8-inch straight shank and is compatible with MM10-style replaceable milling tips. Typical use cases include contouring, shoulder milling, and profiling on CNC machining centers. The 90-degree high-speed shank configuration suits high-RPM spindle setups common in precision component manufacturing environments.

Key Features

• Minimaster MM10 toolholder style accepts interchangeable replaceable milling tips
• 90-degree high-speed shank geometry for high-RPM spindle compatibility
• 3/8-inch (0.375-inch) shank diameter fits standard straight-shank tool holders
• 0.36-inch neck diameter with 0.276-inch projection for precise tip positioning
• Overall length of 1.77 inches suits compact tooling setups
• Maximum cutting diameter of 0.375 inches (9.53 mm)

Compatibility

Designed for use with the Minimaster MM10 replaceable tip milling system. Compatible with MM10-style milling tips and machine spindles accepting a 3/8-inch straight shank.

Installation Notes

Installation and tip changes should be performed by a qualified machinist or tooling technician with the machine powered down and the spindle fully stopped. Follow the machine tool manufacturer's clamping torque guidelines for straight-shank toolholders. Inspect the shank and collet or chuck bore for chips or debris before seating the shank. When swapping milling tips, use the appropriate MM10 tip-change tooling as specified by SECO to ensure proper seating and runout.
