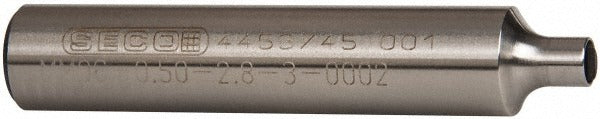

Seco 00096108 Replaceable Tip Milling Shank 1/2 in MM06

Product Description

The SECO 00096108 is a replaceable tip milling shank designed for use with the Minimaster series toolholder system. It features a straight, 1/2-inch (0.500 inch) shank diameter with a 90-degree shank type and accepts MM06 milling tips. The neck diameter measures 0.224 inches, providing clearance during milling operations. Overall length is 2.760 inches with an effective cutting length of 0.984 inches and a head length of 0.360 inches. This shank is installed by machinists and CNC tooling technicians in precision milling applications requiring interchangeable tip technology.

This shank is suited for milling operations where quick tip changes and consistent tool projection are required. The Minimaster MM06 toolholder style is commonly used in both light finishing and general-purpose milling setups on vertical and horizontal machining centers. A projection of 25.00 mm makes it appropriate for applications with moderate reach requirements. No Weldon flat is present on this shank, so it relies on standard collet or chuck clamping.

Key Features

• MM06 Minimaster series compatible replaceable tip interface
• 1/2-inch straight shank diameter, 90-degree shank type
• 0.224-inch neck diameter for improved clearance in tight-profile cuts
• 2.760-inch overall length with 0.984-inch effective length
• No Weldon flat — designed for collet or chuck retention
• Maximum cutting diameter of 0.500 inches (12.70 mm)

Compatibility

Designed for use with Minimaster series MM06 replaceable milling tips. Compatible toolholders and tips must conform to the MM06 interface standard within the Minimaster system.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and locked out before changing or seating the shank. Use a properly sized collet or chuck rated for a 1/2-inch straight shank, and verify that clamping torque is applied per the machine tool manufacturer's specifications. Confirm tip seating and runout with a dial indicator before beginning a cut.
