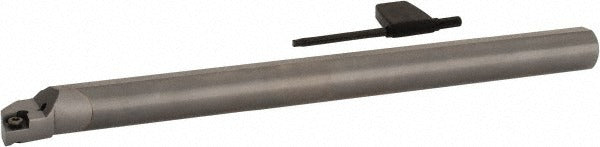

Seco 00093183 Indexable Boring Bar 1 in Right Hand Sclc

Product Description

The SECO 00093183 is a right-hand SCLC indexable boring bar designed for precision internal turning operations on CNC lathes and turning centers. Built from solid carbide, it accepts CCMT insert geometry and uses a screw-clamping holding method for secure, repeatable insert positioning. The minimum bore diameter is 1 inch, the shank diameter is 0.75 inches, and the overall length is 10 inches. A through-coolant channel delivers cutting fluid directly to the insert tip, reducing heat buildup and improving chip evacuation in deep-bore applications. The lead angle is -5 degrees with a neutral rake angle of 0 degrees.

This boring bar is intended for internal diameter turning in metal-cutting environments, including production machining shops and job shops running steel, cast iron, and similar workpiece materials. It is suited for use on CNC turning centers where through-spindle or through-tool coolant is available. The 0.5-inch center-to-cutting-edge dimension supports accurate bore sizing in tight-tolerance applications. Machinists and CNC operators working with CCMT inserts in the 3/8-inch inscribed circle size will find this bar a direct fit for existing tooling setups.

Key Features

• Solid carbide construction for rigidity and vibration damping in boring applications
• Through-coolant channel supports high-pressure coolant delivery to the cutting zone
• SCLC toolholder style accepts CCMT diamond-shaped inserts with screw clamping
• Right-hand cutting direction with neutral rake and -5 degree lead angle
• 1 inch minimum bore diameter with 0.75 inch shank and 10 inch overall length
• Compatible insert inscribed circle size: 3/8 inch (size code 32.5)

Compatibility

Designed for use with CCMT inserts in the 3/8-inch inscribed circle size, insert size code 32.5, in SCLC-style toolholders. Specific machine or model compatibility was not provided; verify shank diameter and bore clearance requirements against your machine tool specifications before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Secure the shank in the turret or boring bar holder to the full clamping depth recommended by the machine tool manufacturer, and verify runout with a dial indicator before cutting. Ensure the through-coolant supply is connected and at the correct operating pressure before engaging the workpiece. Never exceed the insert manufacturer's recommended depth of cut or feed rate for the specific CCMT insert grade in use.
