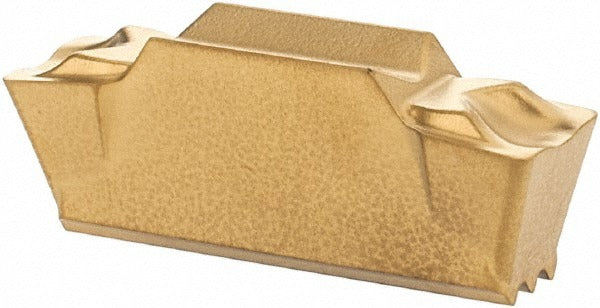

Seco 00093008 Turning Insert CP600 Solid Carbide Pvd

Product Description

The SECO 00093008 is a solid carbide multi-directional turning insert engineered for precision turning and grooving operations. Designated under the MDT series, it carries a CP600 manufacturer grade with a PVD-applied TiAlN/TiN coating for extended edge life and thermal resistance. The insert features a neutral hand orientation and double-end design, making it suitable for both right- and left-hand tool holders in the same LCMF insert style family. With a maximum cutting width of 0.157 inches and a cutting height of 0.177 inches, this insert suits light to medium material removal passes. Licensed machinists and tool-and-die professionals typically install this type of insert in CNC lathe and turning center applications.

This insert is designed for use across a range of workpiece material groups, including stainless steels (M), non-ferrous metals (N), carbon and alloy steels (P), and heat-resistant superalloys (S). The LCMF insert style and 160404 size code make it compatible with standard SECO MDT toolholders designed for that designation. Its MC chipbreaker geometry helps manage chip formation across these varied material types, reducing the risk of built-up edge and improving surface finish in finish and semi-finish turning passes.

Key Features

• CP600 grade solid carbide substrate with PVD TiAlN/TiN coating for wear resistance
• Double-end design extends insert service life between indexing cycles
• Neutral hand orientation fits both right- and left-hand MDT toolholders
• MC chipbreaker geometry supports chip control across multiple workpiece materials
• Corner radius range of 0.008 to 0.016 inches suits fine-finish and general turning profiles
• Insert length of 0.630 inches (15.90 mm) matches LCMF 160404 size code toolholder seats

Compatibility

Designed for use with SECO MDT series toolholders accepting the LCMF insert style in the 160404 size code. Compatible workpiece material groups include M (stainless steel), N (non-ferrous), P (carbon and alloy steel), and S (heat-resistant superalloys).

Installation Notes

This insert is installed by a machinist or tooling technician on a CNC lathe or turning center. The machine spindle and all axis motion must be brought to a full stop and the control placed in an safe state before indexing or replacing inserts. Use the appropriate torx or hex key specified for the MDT toolholder clamp screw and do not overtighten beyond the holder manufacturer's seating guidance. Inspect the toolholder seat and clamp for chips or debris before seating a new insert edge to ensure proper contact and prevent premature edge failure.
