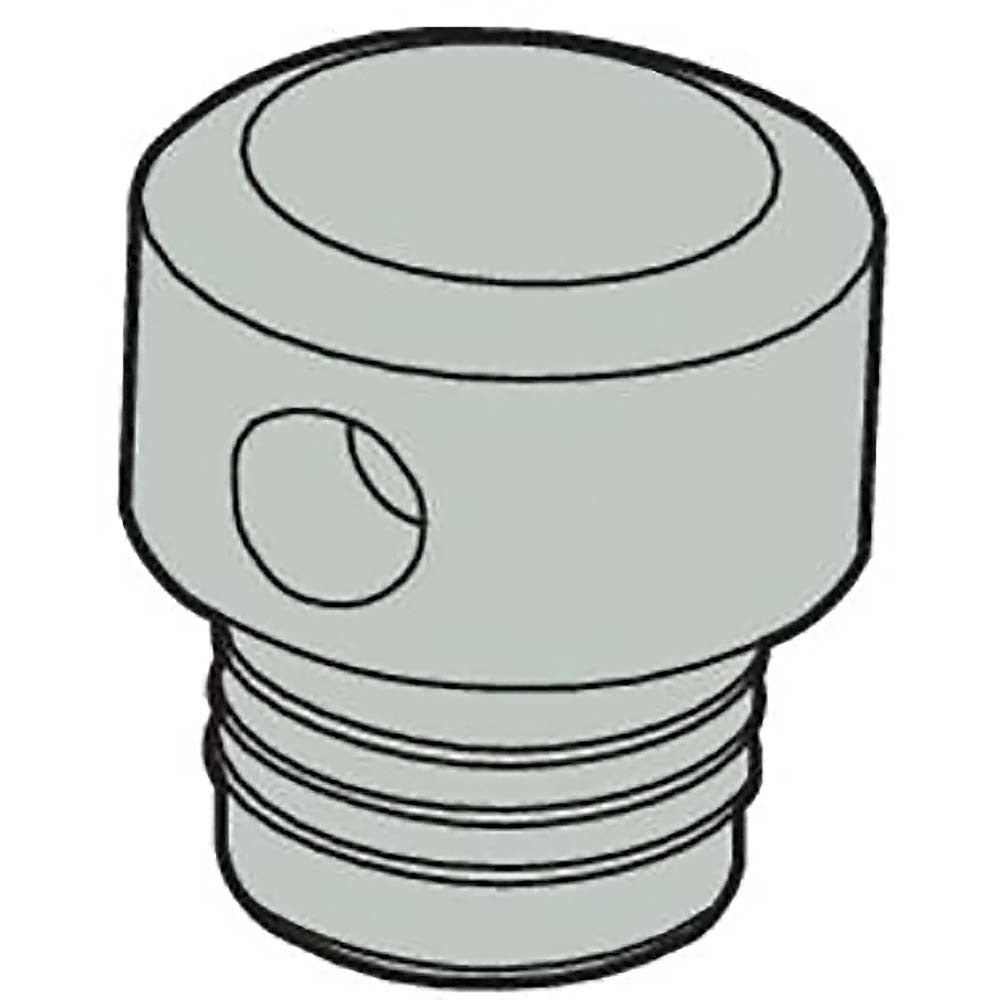

Seco 00082338 Coolant Accessory Indexable Turning

Product Description

The SECO 00082338 is a coolant accessory designed for indexable turning operations. It mounts to compatible SECO tool holders and delivers coolant directly to the cutting zone, helping to control heat buildup, extend insert life, and improve chip evacuation during turning. The part ships as a single-piece unit and is installed by machinists or tooling technicians working with SECO indexable turning setups on CNC lathes and turning centers. At 0.12 pounds, it is a lightweight add-on that integrates into existing holder assemblies without significant modification.

This accessory is suited for production turning environments where through-coolant or directed coolant delivery is required. It is used on SECO A-style turning tool holders across several shank sizes and holder configurations. Compatible holder styles are listed by SECO and cover common bore and OD turning geometries. It is appropriate for both roughing and finishing passes where thermal management at the cutting edge is a priority.

Key Features

• Directs coolant flow to the cutting zone on indexable turning holders
• Compatible with multiple A-series holder styles and shank sizes including A16, A20, A24, A28, A32, and A48
• Lightweight construction at 0.12 pounds for easy handling and installation
• Single-piece unit — sold and packaged individually
• Supports extended insert life by reducing heat at the cutting edge

Compatibility

Compatible with the following SECO tool holder styles: A16/A20/A24/A28/A32-MCLN, A16/A24/A48-MTFN, A20/A24/A32-MDUN, A20/A24/A32-MVUN, A20-MVPN, A24/A32-MVLN, and A24-MSKN.

Installation Notes

Installation is performed by a machinist or toolroom technician familiar with SECO indexable turning holder assemblies. Disengage the machine spindle and shut off coolant supply before handling or mounting this accessory. Verify that the holder style and shank size match the compatibility list before installation. Follow the tool holder manufacturer documentation for proper torque and seating procedures.
