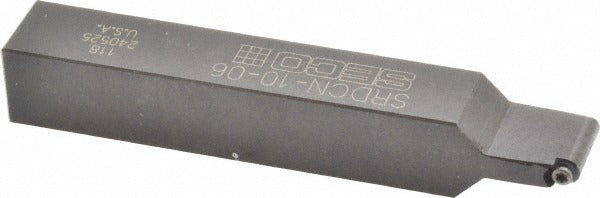

Seco 00071932 Srdc Neutral Turning Toolholder Rcmt

Product Description

The SECO 00071932 is a neutral-hand SRDC-style indexable turning toolholder designed for external turning operations on CNC and manual lathes. It features a 0-degree rake angle and accepts RCMT-style inserts secured via a screw-lock clamping method, providing rigid, repeatable insert positioning. The shank measures 0.625 inches wide by 0.625 inches tall with an overall length of 4 inches. The toolholder body is constructed from steel for durability under continuous cutting loads. It is intended for use by machinists and toolroom technicians working across a broad range of workpiece materials.

This toolholder is suited for neutral cutting direction turning applications in both production and job-shop environments. Its universal primary workpiece material rating spans material groups H, K, M, N, P, and S, covering hardened materials, cast iron, stainless steel, non-ferrous alloys, steel, and superalloys. It is compatible with the RCMT 0602 insert size, making it appropriate for light-to-moderate depth-of-cut turning passes on standard CNC turning centers and engine lathes.

Key Features

• SRDC toolholder style with neutral hand and 0-degree rake angle for straight turning applications
• Screw-lock insert holding method for secure, repeatable insert seating
• Accepts RCMT 0602 inserts with a 0.236-inch inscribed circle
• 0.625 x 0.625 inch steel shank for rigid tool post or turret mounting
• Universal material compatibility across H, K, M, N, P, and S workpiece material groups
• No coolant-through feature; suited for external flood or dry cutting setups

Compatibility

Compatible with RCMT 0602 indexable inserts. The SECO catalog number for this toolholder is SRDCN1006. Verify insert size code and inscribed circle dimension against your current insert inventory before ordering.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Secure the toolholder firmly in the tool post or turret before indexing or clamping inserts. Use the appropriate Torx or hex key as specified by the insert screw manufacturer when seating the RCMT insert. Inspect the insert pocket and clamping screw for wear or debris before each insert change to maintain accurate cutting-edge positioning.
