Seco 00068006 Threading Insert 6 Tpi Stub Acme CP500

Product Description

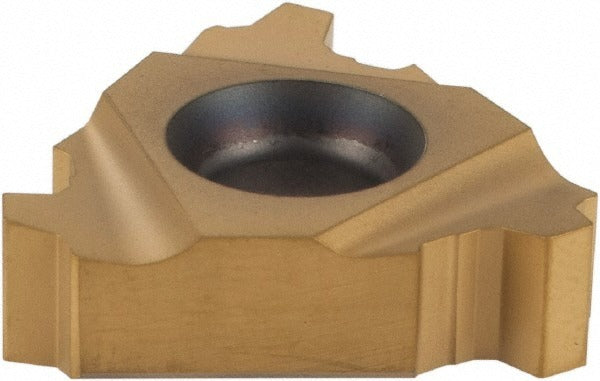

The SECO 00068006 is a solid carbide laydown threading insert designed for external Stub Acme thread cutting at 6 threads per inch. It carries the CP500 manufacturer grade and features a TiAlN/TiN PVD coating that extends tool life across a broad range of workpiece materials. The insert is configured for right-hand cutting and fits the 22ER insert style, with a 1/2 inch inscribed circle and a thickness of 0.1854 inches. It is used in CNC lathes and turning centers by machinists and toolroom professionals producing Stub Acme thread forms on shafts, lead screws, and similar components.

This insert is suited for both production and job-shop environments where Stub Acme external threads are required. The Stub Acme thread form features a 29-degree included angle and is commonly found on linear motion components such as jack screws, valve stems, and feed screws in industrial machinery. The CP500 grade with PVD coating makes this insert applicable across universal workpiece material categories including cast iron, non-ferrous metals, non-metals, steel, and heat-resistant superalloys, as designated by ISO material codes K, M, N, P, and S.

Key Features

• Solid carbide construction in the CP500 grade for consistent thread form accuracy
• TiAlN/TiN PVD coating for extended wear resistance across multiple material types
• Right-hand external Stub Acme thread form at 6 TPI with 29-degree included angle
• 22ER insert style with 1/2 inch inscribed circle fits standard Snap-Tap toolholders
• ISO-compliant geometry compatible with ISO material groups K, M, N, P, and S
• Compact profile at 0.1854 inches thick for use in laydown insert seating systems

Compatibility

Designed for use with 22ER-series Snap-Tap threading toolholders. Compatible with workpiece materials across ISO groups K, M, N, P, and S. Sold individually; minimum order quantity is 2 units.

Installation Notes

Installation should be performed by a qualified machinist following the toolholder manufacturer's insert seating procedures. Ensure the machine spindle is fully stopped and the turret is indexed away from the work zone before changing inserts. Use the correct torque wrench or insert key as specified by the toolholder manufacturer to secure the clamping screw. Verify insert seating and orientation before resuming cutting operations.
