Seco 00067307 Threading Insert 5 Tpi Acme Carbide CP500

Product Description

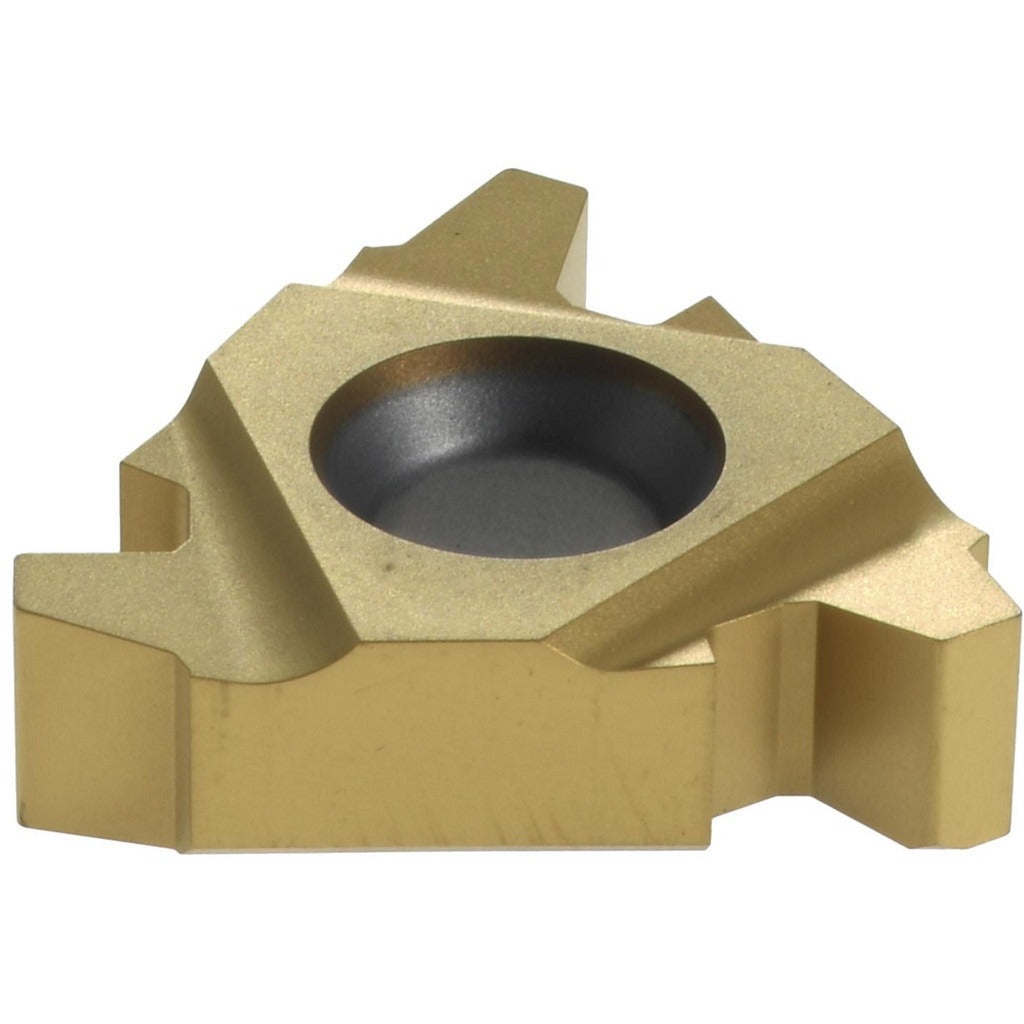

The SECO 00067307 is a solid carbide laydown threading insert designed for external Acme thread cutting at 5 threads per inch (TPI). Part of the Snap-Tap series, it carries a PVD-applied TiAlN/TiN finish for wear resistance across a broad range of workpiece materials. The insert uses a right-hand cutting configuration and features a 29-degree included angle, consistent with standard Acme thread geometry. With an inscribed circle of 0.5 inches and a thickness of 0.1854 inches, the 00067307 is sized for reliable seating in compatible toolholders. Licensed machinists and CNC threading specialists install this insert in production and maintenance turning operations.

The 00067307 is suited for external Acme thread applications on lathes and turning centers where accurate thread form and consistent tool life are required. Its universal primary workpiece material rating covers cast iron, non-ferrous alloys, non-metals, steel, and heat-resistant superalloys, making it a flexible choice across job shop and production environments. The ISO-standard geometry supports repeatable positioning and indexing in Snap-Tap compatible toolholding systems.

Key Features

• Solid carbide substrate with PVD TiAlN/TiN coating for extended wear resistance
• Right-hand external Acme thread form at 5 TPI with 29-degree included angle
• Snap-Tap series insert style code 22ER for consistent toolholder compatibility
• Universal workpiece material rating covers steel, cast iron, non-ferrous, superalloys, and non-metals
• ISO-standard insert geometry for repeatable indexing and seating
• Manufacturer grade CP500 for broad application performance

Compatibility

Designed as a replacement-style threading insert for Snap-Tap series toolholders accepting the 22ER insert style with a 0.5-inch inscribed circle.

Installation Notes

This insert is installed by a qualified machinist or CNC technician. Always power down and lock out the machine before indexing or replacing inserts. Use the correct torque wrench and manufacturer-specified fastener per the toolholder documentation to secure the insert. Inspect the insert pocket for chips or debris before seating the new insert to ensure proper contact and thread form accuracy.
