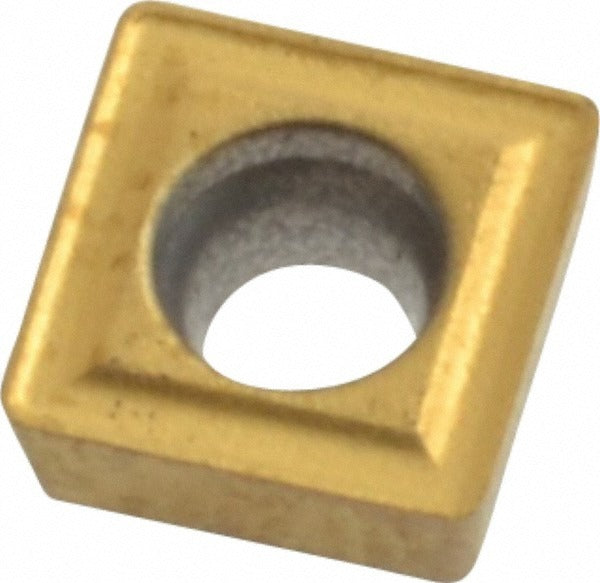

Seco 00059711 Indexable Drill Insert SCGX05P2 T250D Carbide

Product Description

The SECO 00059711 is an indexable drill insert designed for use in indexable drill bodies that require SCGX-style inserts. Manufactured from solid carbide in a micrograin grade and finished with a PVD coating in the T250D manufacturer grade, this insert is built for consistent cutting performance across a wide range of workpiece materials. It features a 90-degree included angle, a 0.0157-inch corner radius, and a P2 chipbreaker geometry that promotes controlled chip evacuation during drilling operations. Weighing 0.02 pounds, it is a compact, precision-ground insert suited for high-production drilling environments.

This insert is rated for universal primary workpiece material compatibility, covering material codes H, M, N, P, and S — spanning hardened materials, stainless and heat-resistant alloys, non-ferrous metals, steels, and superalloys. It is appropriate for use in CNC machining centers and drill presses where indexable drill tooling is employed. Machinists and tooling specialists in metalworking, manufacturing, and machine shop environments are the typical end users. The insert size code is 05, with an insert size designation of 050204.

Key Features

• Solid carbide micrograin substrate for wear resistance and edge stability
• PVD-coated T250D grade for extended tool life across diverse materials
• P2 chipbreaker geometry for controlled chip formation during drilling
• 90-degree included angle compatible with standard SCGX insert seats
• Universal material compatibility covering H, M, N, P, and S workpiece codes
• Sold individually — package quantity of 1

Compatibility

Designed as an OEM-style replacement or direct-fit insert for indexable drill bodies that accept SCGX05 style inserts with a 050204 size designation.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Ensure the drill body pocket and clamping screw are clean and free of chips before seating the insert. Use the torque tool specified by the drill body manufacturer for the clamping screw — do not exceed the recommended seating force. Inspect the insert seat for damage or wear each time inserts are indexed or replaced.
