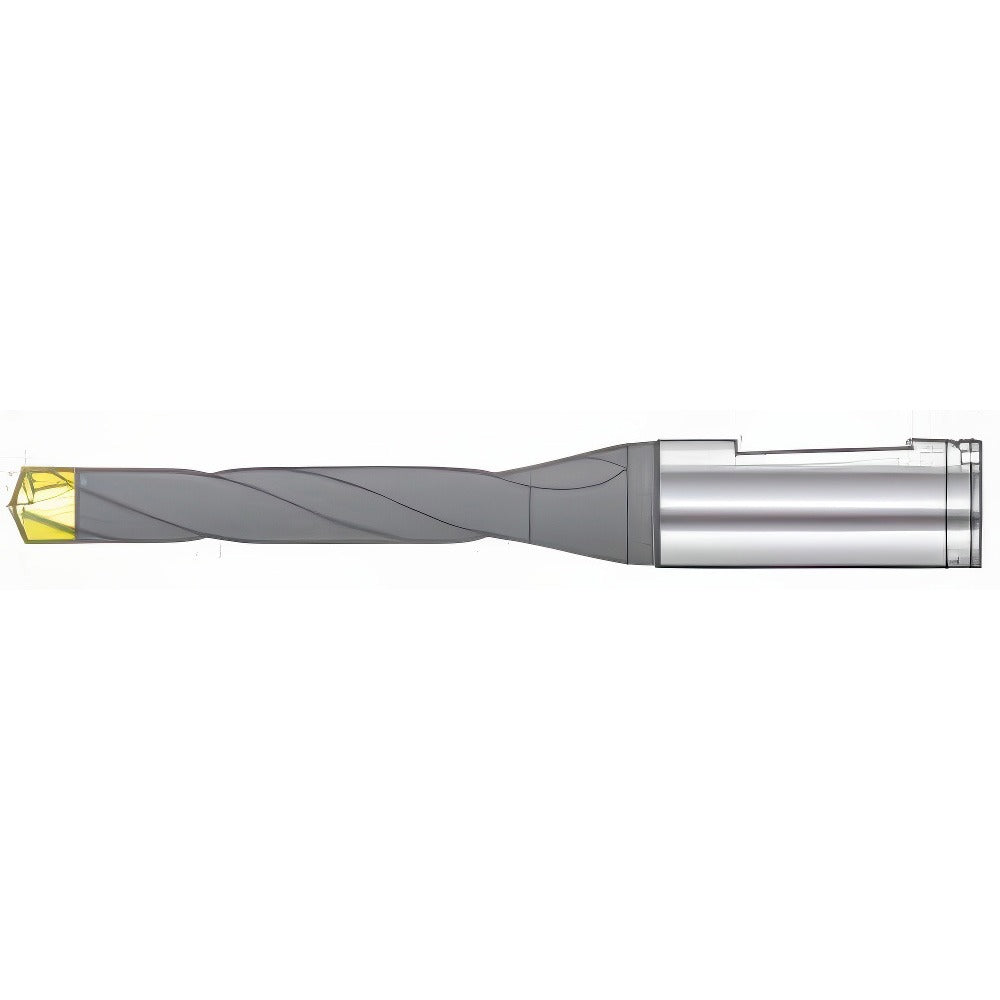

Seco 00059698 Carbide Replaceable Tip Drill 19.05mm Tialn

Product Description

The SECO 00059698 is a carbide replaceable tip drill from the SD100 series, designed for precision hole-making in demanding metalworking applications. The drill body accepts a solid carbide tip with an M geometry insert and a TiAlN coating applied via PVD process, providing wear resistance at elevated cutting temperatures. The 140-degree included angle promotes controlled entry and reduces thrust force. At 19.05mm in diameter and 15.20mm in tip height, this drill is suited for shops running CNC machining centers and production drilling operations where consistent hole quality and tip replaceability are priorities.

This drill is rated for primary use in stainless steel (workpiece material code M), making it appropriate for fabrication and machining operations in industries such as aerospace, medical device, food processing, and general manufacturing. The through-coolant design channels cutting fluid directly to the tip, supporting chip evacuation and thermal management during deep or interrupted cuts. The replaceable tip system reduces downtime by allowing tip changes without removing the drill body from the spindle.

Key Features

• Solid carbide replaceable tip with M geometry for stainless steel and similar ISO M-grade materials
• TiAlN coating via PVD process for extended tool life at high cutting temperatures
• 140-degree included angle reduces entry thrust and improves centering accuracy
• Through-coolant capability supports chip evacuation and tip cooling
• SD100 series body allows fast tip swaps without full tool changeout
• 19.05mm cutting diameter with 15.20mm tip height

Compatibility

Designed as a replaceable carbide tip for SECO SD100 series drill bodies accepting M-geometry tips at 19.05mm diameter. Confirm body size and tip seat designation before ordering.

Installation Notes

Installation of replaceable carbide tips should be performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before seating or removing the tip. Use the manufacturer-specified torx or clamping key to secure the tip to the drill body — do not overtighten or substitute non-specified tools. Verify tip seating and runout before commencing cuts.
