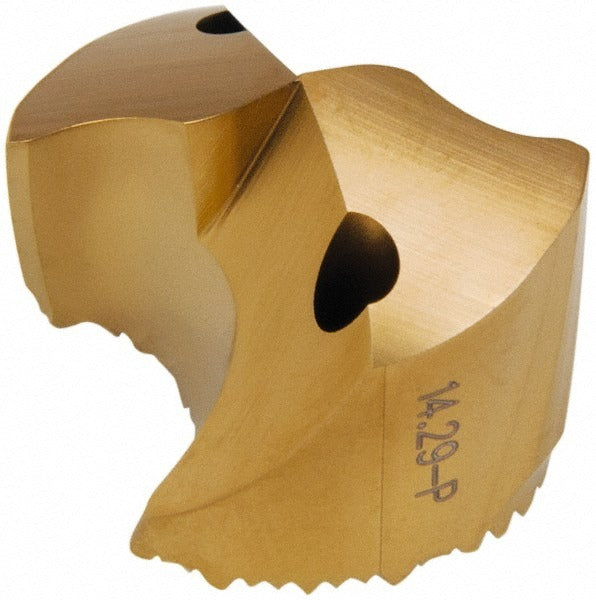

Seco 00059673 Carbide Replaceable Tip Drill 14.29mm SD100

Product Description

The SECO 00059673 is a carbide replaceable tip drill from the SD100 series, designed for high-productivity hole-making in steel and other P-class workpiece materials. The drill features a solid carbide tip with a TiAlN PVD coating that resists heat and abrasion at elevated cutting speeds. The 140-degree included point angle promotes self-centering entry and reduces thrust forces during penetration. At 11mm (0.4331 inches) tip height, the SD100 platform provides a rigid, repeatable seat for the replaceable tip insert, minimizing runout and extending body life across multiple tip changes. Through-coolant capability channels cutting fluid directly to the cutting edge for chip evacuation and thermal control.

This drill is used in CNC machining centers and turning centers where repeatable, close-tolerance drilling in steel is required. The replaceable tip design suits production environments where tool change time and carbide consumption are critical cost factors. The SD100 series geometry code P designates suitability for steel and similar ISO P-class materials. Typical applications include component drilling in general machining, automotive, and die-mold shops.

Key Features

• Solid carbide replaceable tip with TiAlN PVD coating for heat and wear resistance
• 140-degree included point angle for self-centering entry and reduced thrust
• Through-coolant design directs fluid to the cutting zone for chip evacuation
• SD100 series platform enables fast tip replacement without removing the drill body
• Insert geometry code P optimized for ISO P-class steel workpieces
• 11mm tip height provides rigid seating and minimized runout

Compatibility

Designed for use with SECO SD100 series replaceable tip drill bodies accepting the P geometry insert style. Verify body bore diameter matches the 14.29mm tip specification before installation.

Installation Notes

Installation of replaceable tip drills should be performed by a qualified machinist with the spindle at a complete stop and all machine energy isolated. The tip seat and clamping surfaces should be cleaned of chips and debris before seating the new insert to ensure proper torque transfer and runout control. Through-coolant connections must be confirmed clear and functional before resuming cutting operations. Consult the machine tool builder documentation and the SECO SD100 assembly instructions for recommended clamping procedures.
