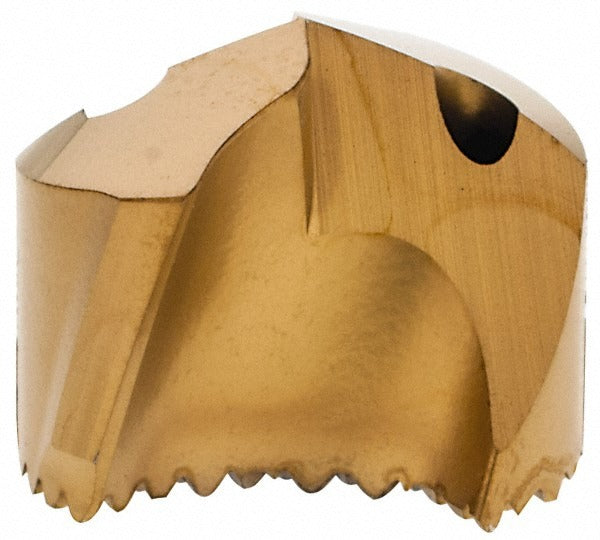

Seco 00059631 Carbide Replaceable Tip Drill SD100 Tialn

Product Description

The SECO 00059631 is a carbide replaceable tip drill from the SD100 series, designed for precision hole-making in steel and similar ferrous workpiece materials. The drill features a solid carbide tip with a TiAlN (titanium aluminum nitride) PVD coating, which provides heat and wear resistance during high-throughput drilling operations. A 140-degree included angle promotes accurate entry and reduces thrust force. The tip measures 12.70mm in diameter and 10mm in height, with through-coolant capability to manage chip evacuation and cutting-edge temperature in deep-hole applications. This tool is intended for use by machinists and tooling professionals in CNC machining environments.

This replaceable tip drill is suited for production drilling in steel workpieces in both job-shop and high-volume manufacturing settings. The SD100 series platform uses an interchangeable tip system, allowing worn tips to be replaced without discarding the drill body. The P-geometry insert designation identifies it as optimized for steel (ISO P material group). Through-coolant delivery supports consistent performance in deeper bore applications where chip control is critical.

Key Features

• Solid carbide tip with TiAlN PVD coating for extended wear life in steel
• 140-degree included angle for controlled entry and reduced thrust
• 12.70mm cutting diameter with 10mm tip height
• Through-coolant design aids chip evacuation and thermal management
• P-geometry designation optimized for ISO P (steel) workpiece materials
• Replaceable tip system reduces tooling cost compared to solid-body drills

Compatibility

Designed for use with SECO SD100 series drill bodies that accept replaceable carbide tips with P-geometry inserts. Confirm shank and tip interface compatibility with the specific drill body before ordering.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the machine in a fully stopped and locked-out state. Follow the drill body manufacturer's torque and seating instructions for the replaceable tip interface. Ensure through-coolant passages in the drill body are clear and that coolant pressure is set per the machining application requirements before engaging the cut. Do not exceed the recommended speed and feed parameters for the workpiece material and tip diameter.
