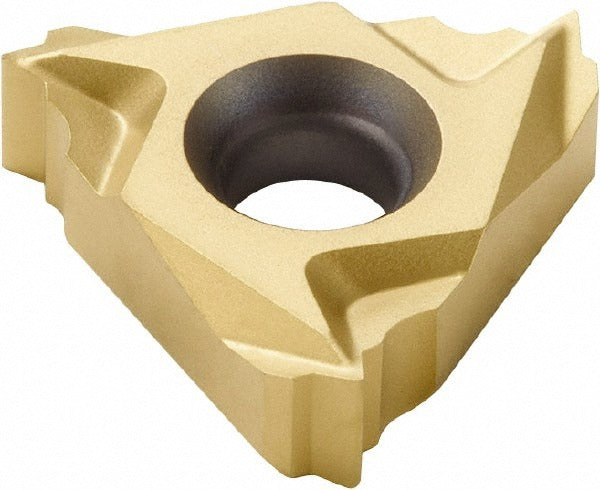

Seco 00050436 Laydown Threading Insert 16NR 1.75ISO-G1

Product Description

The SECO 00050436 is a laydown threading insert designed for external thread cutting operations on CNC lathes and manual turning centers. Designated in the 16NR geometry with a 1.75ISO-G1 thread profile, this insert is manufactured from SECO CP500 carbide grade, a coated carbide substrate suited for threading a range of materials including steel and stainless steel. It is used by machinists and toolroom professionals who require consistent thread form accuracy across production runs. The insert mounts in a standard laydown-style threading toolholder and is sold individually.

This insert is appropriate for external ISO metric threading applications where a 1.75 mm pitch profile is required. The CP500 grade provides wear resistance suitable for moderate to high cutting speeds in ferrous materials. Typical installations are found in job shops, production machining environments, and maintenance machining operations where metric fastener threads are cut to specification. The insert is packaged as a single unit, making it practical for low-volume tooling replenishment or trial use.

Key Features

• 16NR laydown geometry for external threading operations
• 1.75ISO-G1 thread profile matches ISO metric 1.75 mm pitch standard
• CP500 coated carbide grade for wear resistance in ferrous and stainless materials
• Single-piece packaging for individual insert replacement
• Lightweight at 0.12 pounds for easy handling and tool inventory management

Compatibility

Designed as an OEM-style replacement threading insert for standard 16NR laydown threading toolholders accepting the ISO 16NR insert style.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before seating or replacing the insert in the toolholder. Ensure the insert pocket and clamping surfaces are clean and free of chips before torquing the clamp screw. Follow the toolholder manufacturer guidelines for proper insert clamping procedure.
