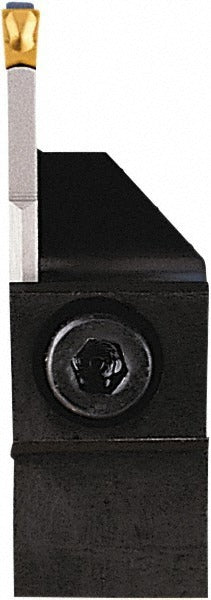

Seco 00048462 Tool Block 150.10 15mm Left Hand Parting

Product Description

The SECO 00048462 is a Style 150.10 indexable cutoff blade tool block designed for parting operations on CNC lathes and turning centers. It accepts blades with a 15mm (0.5906 inches) compatible blade height and mounts via a 0.625 inch shank height by 0.625 inch shank width square shank. The left-hand cutting direction makes it suited for reverse-spindle or specific gang-tooling setups. Machinists and tool-room technicians install this block as part of a modular parting system, using indexable blades and inserts to minimize downtime during tool changes while maintaining consistent cut-off geometry.

This tool block is intended for parting and grooving applications on metal turning equipment. It functions as the holder component in a two-piece modular system, accepting SECO Style 150.10 series blades and the corresponding insert grades. It is appropriate for both production turning environments and job-shop lathes where repeatable part-off performance and quick blade indexing are priorities. The left-hand configuration suits machines where the tool post orientation or spindle direction requires that cutting geometry.

Key Features

• Style 150.10 tool block accepts a full range of 150.10 series indexable parting blades
• Compatible blade height of 15mm (0.5906 inches) for precise blade seating
• Square shank measuring 0.625 inches height by 0.625 inches width for standard tool-post mounting
• Left-hand cutting direction for reverse-spindle or specific lathe orientations
• Modular design supports multiple blade widths and insert grades without replacing the block
• No coolant-through feature — external coolant application applies

Compatibility

Compatible blades: 150.10A-15-1.4, 150.10A-15-2, 150.10A-15-2.5, 150.10A-15-3, L150.10A-15-4, R150.10A-15-4. Compatible inserts include: 150.10-1.4N-14, 150.10-1.4N-16, 150.10-2.0N-14, 150.10-2.0N-16, 150.10-2.5L6-12, 150.10-2.5L6-14, 150.10-2.5L6-16, 150.10-2.5N-12, 150.10-2.5N-14, 150.10-2.5N-16, 150.10-2.5R6-12, 150.10-2.5R6-14, 150.10-2.5R6-16, 150.10-3L6-12, 150.10-3L6-14, and additional 150.10-3 series inserts.

Installation Notes

Installation is performed by a machinist or toolroom technician. Before mounting, power down and lock out the lathe spindle per facility lockout/tagout procedures. Seat the shank fully into the tool post and torque the clamping screws evenly to achieve solid, chatter-free blade support. Verify left-hand cutting direction matches the machine spindle rotation and tool-post orientation before running the first part-off cycle.
