Seco 00046056 Threading Insert 24 Tpi Un Carbide

Product Description

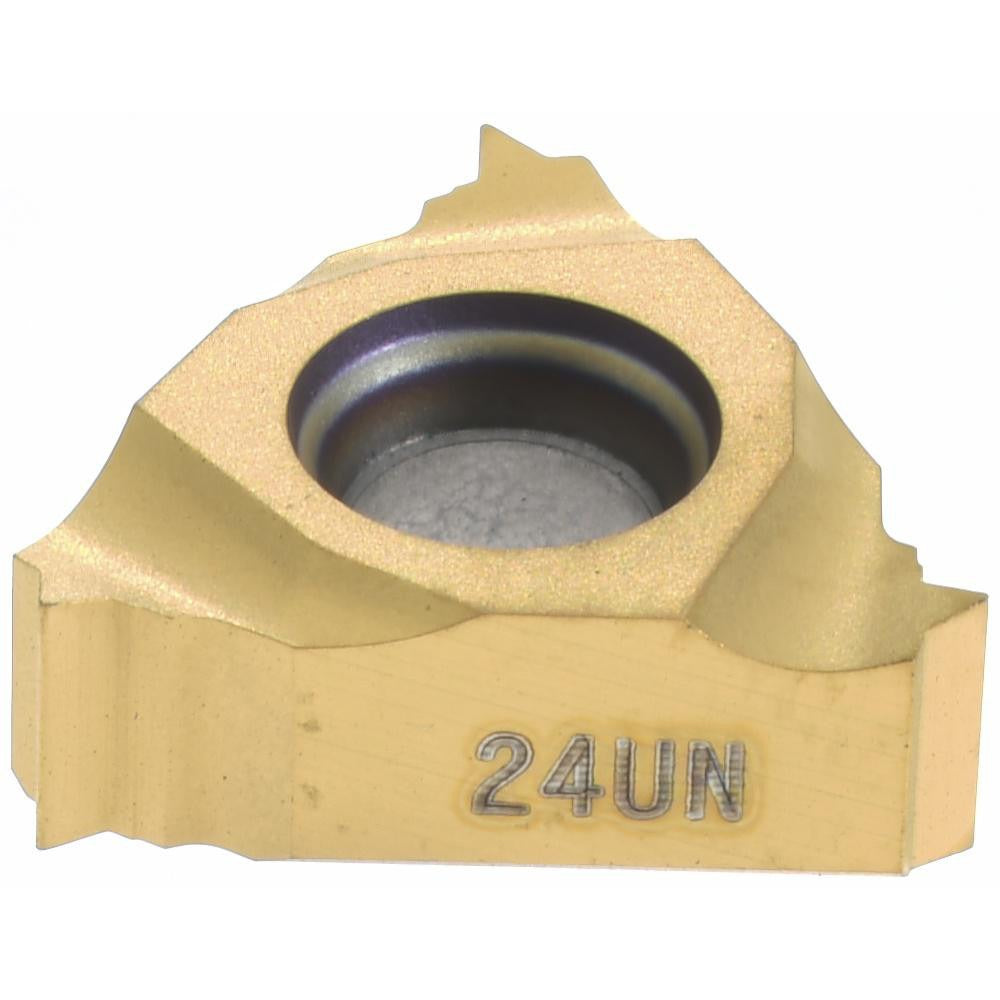

The SECO 00046056 is a laydown threading insert engineered for right-hand internal UN thread cutting at 24 threads per inch. Built from solid carbide in the CP500 grade, the insert features a PVD-applied TiAlN/TiN coating for wear resistance across a broad range of workpiece materials. The 60-degree included angle matches the unified thread form. At 0.1181 inches thick with a 1/4-inch inscribed circle, this insert fits standard laydown toolholders designed for the 11NR style. It is sold in a minimum order quantity of two, with individual package quantity of one. Licensed machinists and CNC lathe operators install this insert in threading toolholders for production and maintenance threading operations.

The 00046056 is suited for internal threading on lathes and turning centers in both production shop and job-shop environments. The CP500 carbide grade with PVD coating covers universal workpiece material categories, including cast iron, stainless steel, non-ferrous alloys, carbon and alloy steels, and heat-resistant superalloys, identified under ISO material codes K, M, N, P, and S. The Snap-Tap series design supports consistent insert seating in compatible toolholders. This insert handles applications where a 24 TPI UN thread form is required in through-holes or blind bores of appropriate diameter for a 1/4-inch inscribed circle insert.

Key Features

• CP500 solid carbide grade with PVD TiAlN/TiN coating for extended tool life
• 24 TPI right-hand internal UN thread form with 60-degree included angle
• 1/4-inch inscribed circle for use in standard 11NR laydown toolholders
• ISO material coverage across K, M, N, P, and S workpiece categories
• Corner radius of 0.0030 inches for controlled thread root geometry
• Snap-Tap series insert style for consistent repeatable seating

Compatibility

Designed for use in toolholders accepting the 11NR laydown insert style with a 1/4-inch inscribed circle. Confirmed for right-hand internal UN threading at 24 TPI per the ISO threading insert standard.
