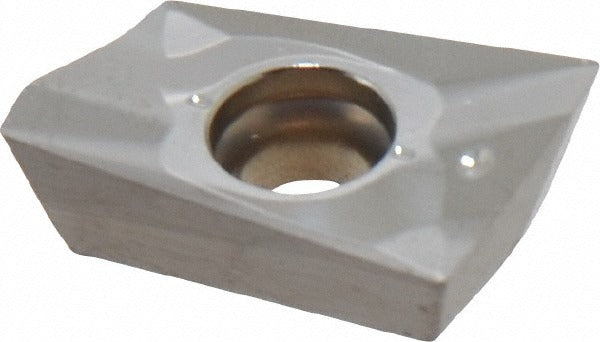

Seco 00039913 Milling Insert XOEX180604FR-E10 H25 Carbide

Product Description

The SECO 00039913 is a solid carbide milling insert carrying the ANSI and ISO designation XOEX180604FR-E10. It belongs to the XOEX-18 series and is manufactured in an H25 micrograin carbide grade with a bright, uncoated finish. The insert is parallelogram-shaped, right-hand cut, and features a positive rake geometry with two sharp cutting edges. A 15-degree relief angle and a 29-degree rake angle work together to reduce cutting forces and promote clean chip formation in demanding milling applications. The E10 chip breaker geometry is matched to light, efficient cutting rather than heavy stock removal.

This insert is intended for milling non-ferrous metals as its primary application, with superalloys and titanium as the secondary workpiece material. The uncoated micrograin carbide substrate maintains sharp edge integrity at the cutting conditions required for these materials. It is sized to the 18-series standard and is compatible with cutter bodies in the R217.69-18 and R220.69-18 series. The screw-holding method provides secure clamping in the tool body. Machinists and tooling specialists working in production or job-shop environments will find this insert sized for face and shoulder milling operations where edge sharpness and dimensional consistency are critical.

Key Features

• H25 micrograin solid carbide grade — uncoated, bright finish for non-ferrous and titanium workpieces
• XOEX180604FR-E10 geometry: positive rake (29 degrees), 15-degree relief angle, sharp cutting edge style
• 2 cutting edges, single-sided, right-hand orientation
• E10 chip breaker optimized for light, free-cutting passes in non-ferrous and superalloy materials
• Screw-holding insert mount for rigid, repeatable positioning in compatible cutter bodies
• Compliant with ISO standards; ANSI and ISO codes both designated XOEX180604FR-E10

Compatibility

Designed for use with R217.69-18 and R220.69-18 series milling cutter bodies. The insert size code is 180604 within the XOEX-18 series. Minimum order quantity is 10 inserts; package quantity is 1.

Installation Notes

Installation is performed by tooling specialists or machinists following the cutter body manufacturer's clamping torque and seating procedures. Power down and lock out the spindle before seating or replacing inserts. Inspect the pocket seat for chips or debris before installation to ensure proper insert contact and prevent premature edge failure. Follow shop safety protocols and applicable machine guarding requirements when handling sharp-edged carbide inserts.
