Seco 00039473 Laydown Threading Insert 09NR CP500 48-16 Tpi

Product Description

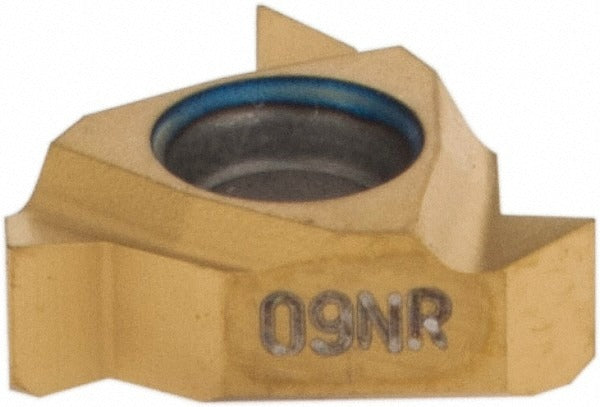

The SECO 00039473 is a solid carbide laydown threading insert designed for internal thread cutting operations. Built to the 09NR insert style in the Snap Tap series, it carries a CP500 manufacturer grade with a micrograin carbide substrate and a PVD-applied TiAlN/TiN coating. The insert produces a partial profile 60-degree thread angle and covers a threads-per-inch range of 48 to 16 TPI, equivalent to a metric pitch range of 0.50 to 1.50 mm. At 0.0945 inches thick with a 7/32-inch (0.2188 inches) inscribed circle and a 0.0030-inch corner radius, this insert is sized for standard toolholders accepting the 09NR form factor. Installation is right-hand orientation for internal threading applications.

This insert is suited for internal threading on CNC lathes and turning centers across a broad range of workpiece materials. The universal primary workpiece material rating covers ISO material groups K, M, P, and S, making it applicable to cast iron, stainless steel, carbon and alloy steel, and heat-resistant superalloys. The Snap Tap series design supports consistent seating in laydown-style toolholders, and the PVD TiAlN/TiN coating provides wear resistance at elevated cutting temperatures common in production threading cycles. Typical users include CNC machinists and toolroom technicians in precision machining environments.

Key Features

• Solid carbide micrograin substrate with PVD TiAlN/TiN coating for extended tool life
• Covers 48-16 TPI range (0.50 to 1.50 mm pitch) in a single insert
• Right-hand internal partial profile 60-degree thread form
• Universal material compatibility across ISO groups K, M, P, and S
• 09NR Snap Tap series style for laydown toolholder systems
• Corner radius of 0.0030 inches for controlled thread root geometry

Compatibility

Designed for use in laydown-style toolholders that accept the 09NR insert style. Minimum order quantity is 2 units; package quantity is 1 per package. Conforms to ISO standards for threading insert geometry.

Installation Notes

This insert is installed by a CNC machinist or toolroom technician. Power down and lock out the machine before seating or indexing the insert. Use the correct torx or hex key specified by the toolholder manufacturer to achieve proper clamp force — do not overtighten or undertighten the clamping screw. Verify insert orientation and seating before resuming cutting operations.
