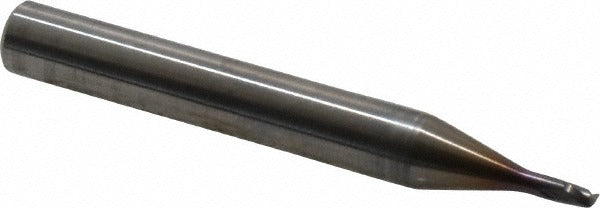

Seco 00023309 Corner Radius End Mill 2mm 2 Flute Carbide

Product Description

The SECO 00023309 is a solid carbide corner radius end mill designed for precision milling in demanding industrial applications. It features a 2 mm cutting diameter, a 0.15 mm corner radius, and a 2.2 mm length of cut, making it well suited for fine detail work and tight-tolerance profiling. The tool carries a MEGA-T coating for improved wear resistance and performance across a broad range of workpiece materials. With two flutes and a right-hand spiral flute geometry, it delivers efficient chip evacuation at small diameters. Licensed machinists and CNC tooling specialists are the primary users of this end mill.

This end mill is designed for single-end, centercutting operation with a 6 mm straight-cylindrical shank and a 50 mm overall length. The extended-reach design, with a 6 mm reach length and a 1.90 mm neck diameter, allows access to recessed features and deep pockets. It is rated for use on workpiece material codes H, M, N, P, and S, covering hardened steels, stainless steels, non-ferrous materials, carbon steels, and heat-resistant superalloys. It is commonly used in CNC machining centers for mold, die, and precision component work.

Key Features

• 2 mm cutting diameter with a 0.15 mm corner radius for fine-detail profiling
• MEGA-T coating for enhanced wear resistance and extended tool life
• Solid carbide construction for rigidity and dimensional stability
• 2-flute right-hand spiral geometry for efficient chip evacuation at small diameters
• Extended-reach design with 1.90 mm neck diameter for access to deep or recessed features
• Centercutting capability allows plunge entry into the workpiece

Compatibility

Rated for workpiece material codes H, M, N, P, and S — covering hardened steels, stainless steels, non-ferrous metals, carbon and alloy steels, and heat-resistant superalloys. Part of the SECO Series JM920 end mill family.

Installation Notes

Installation and use of this end mill requires a CNC machining center or manual milling machine with a collet or tool holder accepting a 6 mm straight-cylindrical shank. Verify tool holder runout against the maximum TIR specification before use. Power down and lock out the machine spindle before changing or inspecting tooling. Follow the machine manufacturer and tooling manufacturer guidelines for speeds, feeds, and depth of cut.
