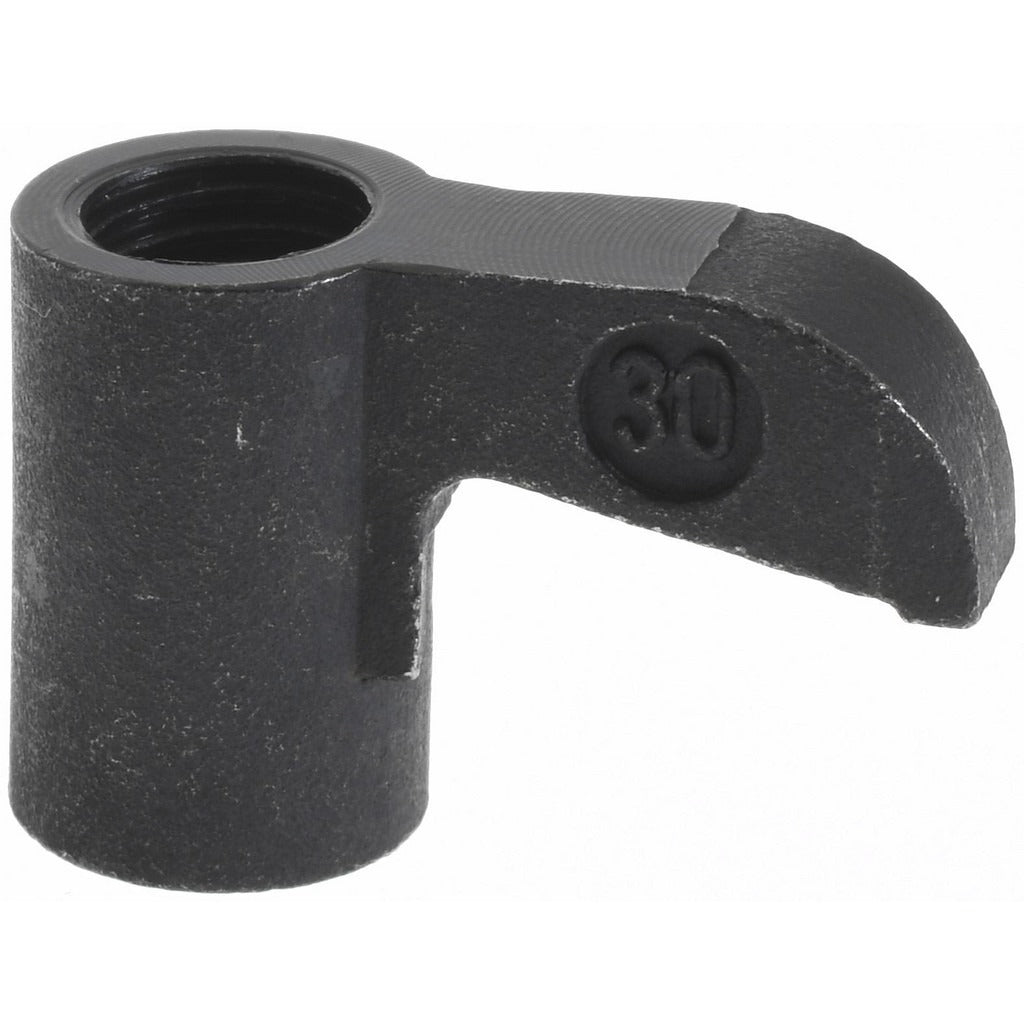

Seco 00018322 Cantilever Clamp Indexable Toolholders

Product Description

The SECO 00018322 is a CL-style cantilever clamp designed to secure indexable inserts in compatible toolholders. Part of the Secomax series, this clamp provides consistent clamping force on the insert to maintain accurate positioning during turning operations. The CL clamp style is a recognized industry-standard configuration used across a wide range of toolholder families. Installation is performed by machinists and toolroom technicians as part of routine insert indexing or replacement. The insert dimension rating for this clamp is size 3, making it appropriate for toolholders specified to that dimension class.

This clamp is suited for use in CNC and manual turning applications where Secomax-series toolholders are deployed. It supports both left-hand and right-hand cutting directions, making it applicable across a variety of turning setups. Compatible toolholder styles include MVJN R/L, MVLNR/L, MVPNR/L, MVTNR/L, and MVUNR/L. This clamp is commonly found in production machining environments, job shops, and toolrooms where indexable insert tooling is standard practice.

Key Features

• CL cantilever clamp style for positive insert retention in Secomax-series toolholders
• Compatible with both left-hand and right-hand cutting directions
• Fits MVJN R/L, MVLNR/L, MVPNR/L, MVTNR/L, and MVUNR/L toolholder styles
• Tool holder insert dimension size 3
• Industry standard number 18322 for cross-reference sourcing
• Sold individually; minimum order quantity of 10 units

Compatibility

Compatible with Secomax-series toolholders in styles MVJN R/L, MVLNR/L, MVPNR/L, MVTNR/L, and MVUNR/L, supporting left-hand and right-hand cutting directions with insert dimension size 3.

Installation Notes

This clamp is installed and replaced by machinists or toolroom technicians during insert indexing or changeover. Always ensure the toolholder is removed from the machine spindle or turret and the machine is in a safe, locked-out state before servicing clamping components. Use the appropriate torque wrench and manufacturer-specified clamp screw to avoid damaging the clamp seat or insert pocket. Inspect the clamp and seating surfaces for wear or debris before installing a new indexable insert.
