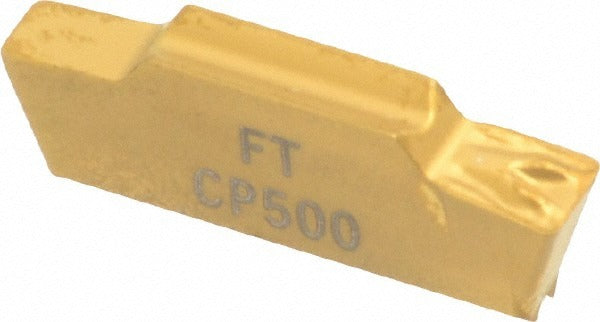

Seco 00016841 Turning Insert CP500 Solid Carbide Pvd

Product Description

The SECO 00016841 is a solid carbide multi-directional turning (MDT) insert designed for external and internal profiling and grooving operations on CNC lathes and turning centers. Manufactured from micrograin solid carbide in the CP500 grade with a PVD-applied TiAlN/TiN coating, this insert delivers controlled wear resistance across a broad range of workpiece materials. It carries a neutral hand orientation, meaning it mounts without a preferred cut direction. Key cutting geometry includes a 0.118-inch maximum cutting width, a 0.177-inch cutting height, and a 0.016-inch corner radius. The FT chipbreaker geometry supports chip control during light-to-medium finishing cuts.

This insert is suited for shops performing precision turning and profiling in aerospace, medical, automotive, and general metalworking environments. The CP500 grade with PVD coating is rated for use on ISO material groups H, K, M, N, P, and S, covering hardened steels, cast irons, stainless steels, non-ferrous alloys, carbon and alloy steels, and superalloys. It fits the MDT series insert toolholders using the LCMR160304-0300-FT style designation. Sold individually with a minimum order quantity of 10 units per order.

Key Features

• CP500 micrograin solid carbide substrate for high edge integrity and wear resistance
• PVD TiAlN/TiN coating supports broad workpiece material coverage across ISO groups H, K, M, N, P, and S
• Neutral hand orientation for flexible toolholder mounting
• FT chipbreaker geometry promotes chip control in finishing applications
• 0.016-inch corner radius supports tight-tolerance profiling and shoulder work
• Single-end insert; 7-degree relief angle for clearance on contoured surfaces

Compatibility

Designed for use with MDT series toolholders accepting LCMR-style inserts. Insert style code is LCMR160304-0300-FT. Verify toolholder seat geometry and clamping method before installation.

Installation Notes

Insert seating and clamping should be performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before changing inserts. Use the torque specification provided by the toolholder manufacturer when tightening the clamp screw — do not over-torque, as micrograin carbide inserts are brittle under bending load. Inspect the insert pocket for debris or damage before seating a new insert.
