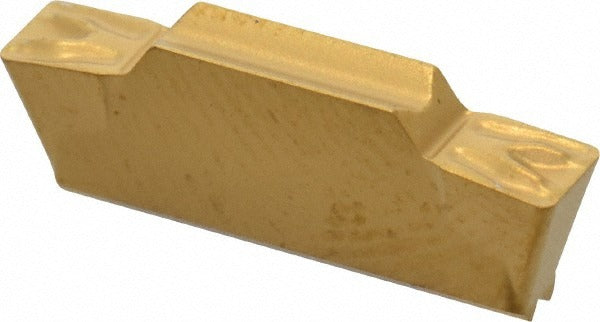

Seco 00016829 Turning Insert CP500 Solid Carbide Lcmf

Product Description

The SECO 00016829 is a solid carbide multi-directional turning insert designed for grooving and turning operations in CNC machining environments. Built to the LCMF insert style in the MDT (Multi-Directional Turning) series, it features a TiAlN/TiN PVD coating applied over a micrograin solid carbide substrate in manufacturer grade CP500. The insert carries a 0.118-inch maximum cutting width, a 0.177-inch cutting height, and a 0.016-inch corner radius. It is double-ended and neutral-hand, making it adaptable for a range of machine configurations. Installation and use are handled by machinists and CNC operators in production or job-shop settings.

This insert is suited for multi-directional turning applications where versatility across workpiece material types is required. The CP500 grade with FT chipbreaker geometry supports cutting across a broad range of material codes including steel (P), stainless (M), cast iron (K), non-ferrous (N), hardened materials (H), and superalloys (S). It is commonly used in external and internal profiling, face grooving, and axial turning on CNC lathes and turning centers.

Key Features

• Solid carbide micrograin substrate in CP500 manufacturer grade for consistent edge integrity
• TiAlN/TiN PVD coating for improved wear resistance and thermal stability
• Double-ended, neutral-hand design extends insert life and broadens machine compatibility
• FT chipbreaker geometry supports chip control across multiple workpiece materials
• 0.016-inch corner radius suited for finishing and semi-finishing passes
• LCMF160304-0300-FT style designation for straightforward replacement ordering

Compatibility

Designed as an OEM-style replacement insert for MDT series multi-directional turning toolholders accepting LCMF-style inserts. Compatible workpiece material codes include H, K, M, N, P, and S as specified by the manufacturer.

Installation Notes

This insert is installed and replaced by machinists or CNC operators following standard insert-change procedures. Power down and lock out the machine spindle before handling inserts. Use the appropriate torque wrench and clamping screw specified by the toolholder manufacturer — do not over-torque the clamping screw. Inspect the insert pocket and seating surface for chips or debris before seating the new insert.
