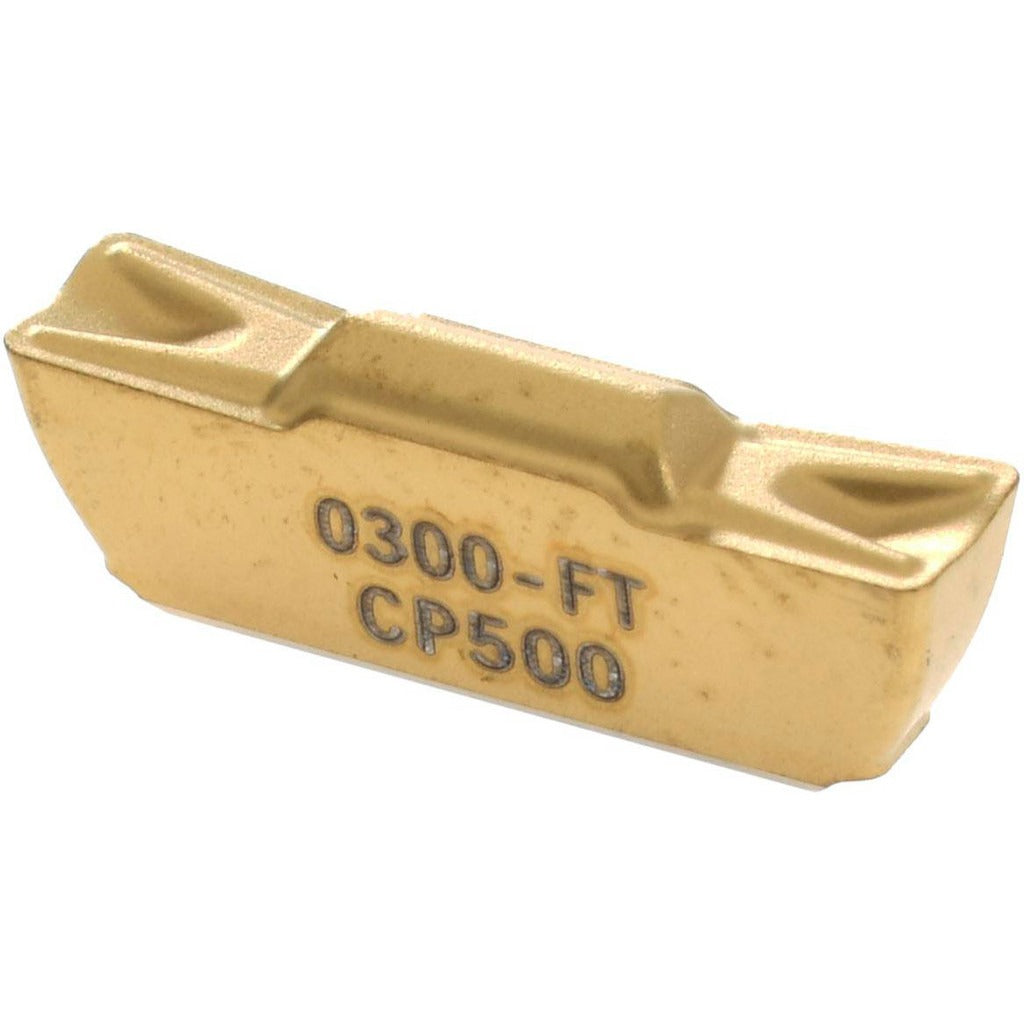

Seco 00016705 Turning Insert LCMF1303040300FT CP500

Product Description

The SECO 00016705 is a solid carbide multi-directional turning insert designed for precision grooving and parting operations on CNC lathes and turning centers. Manufactured in the LCMF style with a CP500 material grade and PVD coating, this insert delivers consistent performance across a range of workpiece materials. The neutral hand orientation and double-end configuration maximize usable cutting edges per insert. A cutting height of 0.157 inches and a maximum cutting width of 0.118 inches (3.00 mm) make it well suited for controlled, repeatable groove profiles in high-production environments.

This insert is used in MDT series multi-directional turning toolholders in both light and medium-duty turning applications. The FT chipbreaker geometry is optimized for chip control across multiple material classes including steel, stainless steel, cast iron, non-ferrous alloys, high-temperature alloys, and hardened materials. It is installed and managed by CNC machinists and tool crib technicians working in production machining, job shop, and contract manufacturing environments.

Key Features

• Solid carbide micrograin substrate with CP500 manufacturer grade for wear resistance
• PVD coating process for improved edge integrity and reduced built-up edge
• Neutral hand, double-end insert — two usable cutting edges per piece
• FT chipbreaker geometry supports broad material class compatibility
• Corner radius of 0.016 inches for controlled groove floor finish
• Relief angle of 7 degrees reduces flank wear in grooving applications

Compatibility

Designed for use in SECO MDT series multi-directional turning toolholders accepting LCMF-style inserts. Compatible workpiece material codes include H, K, M, N, P, and S as specified by the manufacturer.

Installation Notes

Insert seating and clamping should be performed by a qualified CNC machinist or tooling technician following the toolholder manufacturer's clamping torque specifications. Ensure the machine spindle is fully stopped and the machine is in a safe state before changing inserts. Inspect the insert pocket and clamping screw for wear or damage before seating a new insert. This item is sold in multiples of 10 at the minimum order quantity.
