Seco 00013107 Indexable Turning Toolholder Rh Neutral

Product Description

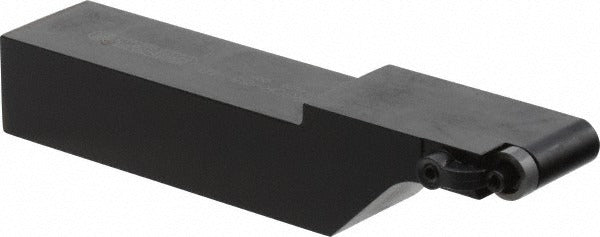

The SECO 00013107 is a right-hand, neutral-rake indexable turning toolholder in the MRGO style, designed for general turning operations on CNC lathes and manual turning centers. Built from steel, it features a 1-inch wide by 1.25-inch tall shank and an overall length of 6 inches. The toolholder uses a clamp-and-pin insert holding method for secure, repeatable seating of RCMM43 series inserts. With a 90-degree lead angle and zero rake angle, it delivers straight, neutral cutting geometry suited to a wide range of workpiece materials. Licensed HVAC techs and trade machinists working in production or job-shop turning environments will find this holder straightforward to set up and swap.

The 00013107 is part of SECO's Multi-Directional Turning (MDT) series and is intended for external turning applications. Its universal material compatibility rating covers ferrous, non-ferrous, stainless, superalloys, and cast materials, making it useful across high-mix production environments. The right-hand cutting direction and neutral rake geometry are suited to standard right-to-left turning passes. No coolant-through capability is present on this model.

Key Features

• MRGO toolholder style with 90-degree lead angle and 0-degree rake angle for neutral cutting geometry
• Right-hand cutting direction for standard lathe turning operations
• Clamp and pin insert holding method for secure, repeatable insert positioning
• Accepts RCMM43 series inserts with a 0.5-inch inscribed circle
• Steel construction with a 1 x 1.25 inch shank cross-section and 6-inch overall length
• Universal workpiece material compatibility: ferrous, non-ferrous, stainless, superalloys, and cast

Compatibility

Designed to accept RCMM43 series inserts (complete insert compatibility code: RCMM 43). Part of the SECO Multi-Directional Turning (MDT) series. No additional specific machine or system compatibility data was provided in the product data.

Installation Notes

Installation is performed by a machinist or tool crib technician on a properly de-energized or stopped lathe or turning center. Ensure the machine spindle is fully stopped and the turret is in a safe index position before mounting or removing the toolholder. Secure the shank in the tool block or turret station according to the machine manufacturer's torque and clamping specifications. Insert selection and seating should follow SECO's published insert installation guidelines for the RCMM43 insert family.
