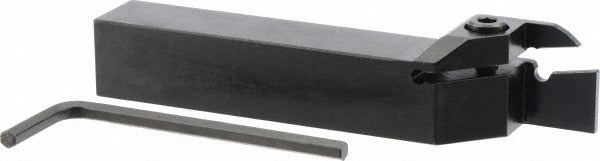

Seco 00002849 Cfmr Indexable Turning Toolholder

Product Description

The SECO 00002849 is a right-hand CFMR-style indexable turning toolholder designed for cut-off and grooving operations on CNC and manual turning centers. Built on a 0.75 x 0.75 inch steel shank with an overall length of 4.5 inches, it accepts LC..1603.. series inserts secured by a clamp-style holding method. The 00002849 is part of SECO's Multi-Directional Turning (MDT) series and supports coolant-through capability, making it suitable for a wide range of workpiece materials including ferrous alloys, non-ferrous metals, stainless, superalloys, and plastics. Licensed machinists and CNC operators install this holder in standard square-shank toolposts and turrets.

This toolholder is suited for both production turning and job-shop environments where versatility across material types is required. The CFMR style and 90-degree lead angle position the cutting edge for efficient radial grooving and parting operations. With a maximum depth of cut of 0.43 inches and an insert width of 0.125 inches (3.00 mm), it handles light to moderate grooving passes. The back-of-bar to cutting edge distance is 1.00 inch, and the head length is 1.14 inches, allowing straightforward setup on most turret-style lathes in both shop and production settings.

Key Features

• CFMR toolholder style with right-hand cutting direction and 90-degree lead angle
• Accepts LC..1603.. inserts including LCGN, LCMF, and LCMR insert styles
• Clamp-style insert holding for secure seating during cut-off and grooving
• Coolant-through design supports chip evacuation in deep or interrupted grooves
• Universal primary workpiece material compatibility: steel, cast iron, stainless, non-ferrous, superalloys, and plastics
• Multi-use designation within the MDT series allows flexible application across operations

Compatibility

Compatible with LC..1603.. series inserts, including LCGN, LCMF, and LCMR styles with an insert size code of LC1603. Designed as an OEM-style fit for standard square-shank toolposts and turrets accepting a 0.75 x 0.75 inch shank.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Power down and de-energize the machine spindle before mounting or removing the toolholder. Verify turret or toolpost bore dimensions match the 0.75 x 0.75 inch shank before seating the holder. Confirm coolant-through passages are clear and aligned with the machine's internal coolant supply before operation.
