Sealed Unit Parts Co CH3200 Broil Element 240V 3000 Watts Replacement Part

Product Description

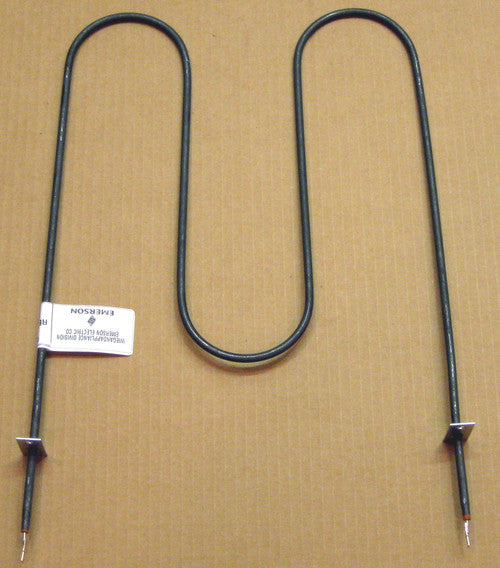

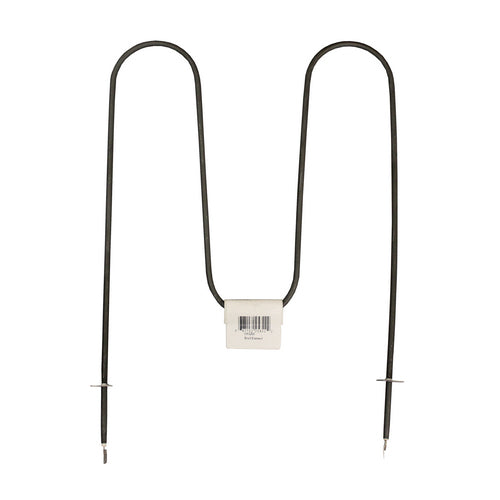

The Sealed Unit Parts Co CH3200 is a broil element suitable for Electrolux, Frigidaire, Crosley, Kelvinator, Kenmore, Tappan, and Westinghouse ranges. Operating at 240V, it delivers 3000 Watts. The element measures 15-1/4 inches in length, 12-1/2 inches in width, and has a 3-1/4 inch insert. It comes with 1/4-inch vertical push-in terminals and mounting holes spaced 12-1/4 inches apart, center to center. The Incoloy outer sheath provides high temperature resistance and includes a moisture-resistant seal using high-temperature liquid silicone. This product is backed by a 1-year warranty.

• Designed for multiple compatible brands
• Manufactured on OEM production lines
• UL/CSA approved for safety standards

Product Highlights

The broil element features durable materials and precise dimensions for optimal performance.

Product Information

Standard Information

• MPN: CH3200
• Brand: Sealed Unit Parts Co

Technical Specifications

• Voltage: 240V
• Wattage: 3000 Watts
• Dimensions: 15-1/4 inches length, 12-1/2 inches width, 3-1/4 inches insert
• Mounting Hole Distance: 12-1/4 inches center to center
• Material: Incoloy outer sheath
• Weight: 0.65 lbs
• Country of Manufacture: China
• UPC: 687152258222
