Seagull Lighting MCRC3 Hardwired Wall Remote Control

Product Description

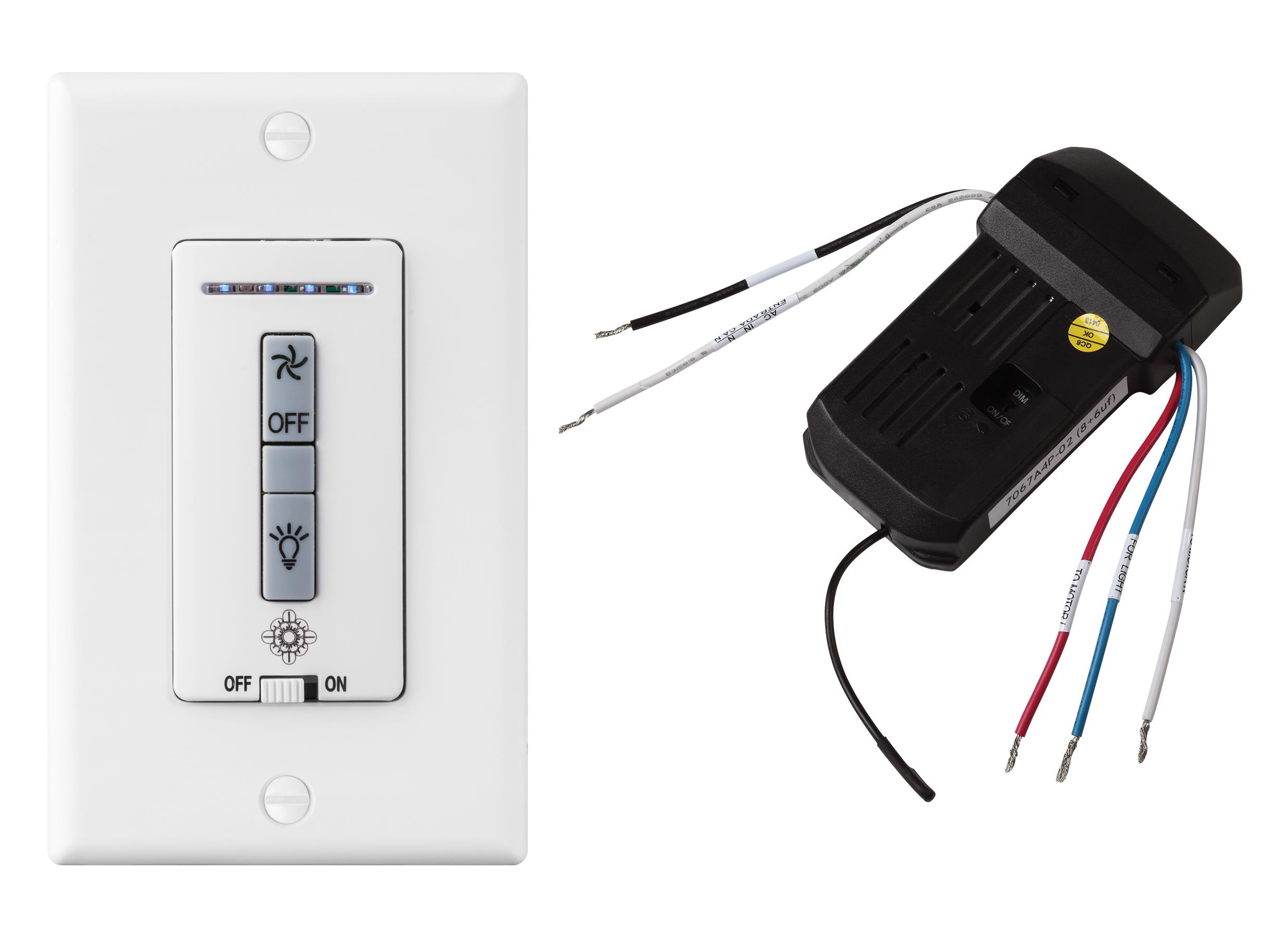

The SEAGULL LIGHTING MCRC3 is a hardwired wall-mount remote control and receiver unit designed for indoor ceiling fan installations. It provides three-speed fan control plus downlight control from a fixed wall location, and it converts a standard three-speed pull-chain fan into a four-speed fan by adding an intermediate medium speed. The unit is non-reversing and mounts directly at the wall, offering a permanent, hard-wired solution that eliminates handheld remote hardware. Licensed electricians and HVAC techs handling fan control wiring are the typical installers.

This control is intended for indoor residential ceiling fan applications where a clean, wall-integrated control solution is preferred over a handheld remote or pull-chain operation. The MCRC3 is part of the NEO Universal Remote product line and is compatible with pull-chain fans from a wide range of manufacturers. Its built-in magnet allows the wall-mount faceplate to hold firmly against metal surfaces, reducing the chance of displacement during service or adjustment. It suits both new fan installations and retrofit upgrades on existing pull-chain fan setups.

Key Features

• Hardwired wall-mount design — cannot be misplaced or lost like a portable handheld remote
• Controls fan speed across three settings plus adds a fourth intermediate medium speed
• Integrated downlight control for compatible fan-light combinations
• Non-reversing operation — fan direction is fixed at installation
• Built-in magnet allows secure attachment to metal surfaces
• Rated for indoor use only

Compatibility

Designed as a universal-style hardwired wall control for pull-chain ceiling fans made by a wide range of manufacturers. Specific compatible model numbers were not provided in the product data — verify fan compatibility before installation.

Installation Notes

Installation of the MCRC3 should be performed by a licensed electrician following applicable NEC guidelines for low-voltage and fan control wiring. Disconnect power at the circuit breaker before wiring the receiver unit to the fan and wall switch leg. Do not install in outdoor, damp, or wet-rated locations. Confirm that the ceiling fan is a pull-chain type and supports the control receiver before completing the retrofit.

Technical Specifications

• Control Type: Hardwired wall-mount remote control and receiver
• Fan Speed Settings: 4-speed output (converts 3-speed fan)
• Downlight Control: Yes
• Reversing: Non-reversing
• Location Rating: Indoor use only
• UPC: 014817515985

Standard Information

• Brand: SEAGULL LIGHTING
• Manufacturer Part Number: MCRC3
