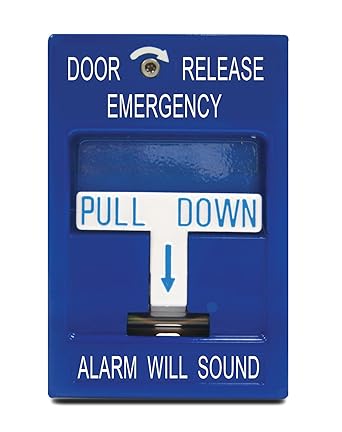

Sdc Sdc-492 pull station emergency door release

Product Description

The SDC SDC-492 emergency release stations provide immediate unlocking of perimeter or interior doors equipped with fail-safe electric locks. An integrated alarm may be used as a local door annunciator. Designed for emergency door release, the 490 series may influence the approval of an electric locking system. Includes two replacement glass pieces.

• Blue housing eliminates confusion with red fire alarm stations
• Easy to read activation instruction
• Integrated siren sounds upon activation

Product Highlights

Emergency door release pull station with built-in local alarm and 2-SPDT contacts for remote annunciation.

Product Information

Standard Information

• Brand: SDC
• Manufacturer Part Number: SDC-492
• Country of Origin: United States

Technical Specifications

• Country of Origin (subject to change): United States
• ADI Part Number: SZ-492
• Brand Name: Security Door Controls
• Manufacturer: Security Door Controls
• Manufacturer Part Number: 492
• Product Model: 492
• Product Series: 490
• Product Type: Pull Station
• Application/Usage: Door, Fire Alarm
• Gang Type: Single Gang
• Material: Die-cast
• Depth: 1.4"
• Height: 4.8"
• Width: 3.3"
• Input Voltage: 12V DC, 24V DC
• Print/Message: Emergency Door Release, Pull Down
