Sdc S6102PU36101ND Rim Exit Device Panic Hardware 36 in

Product Description

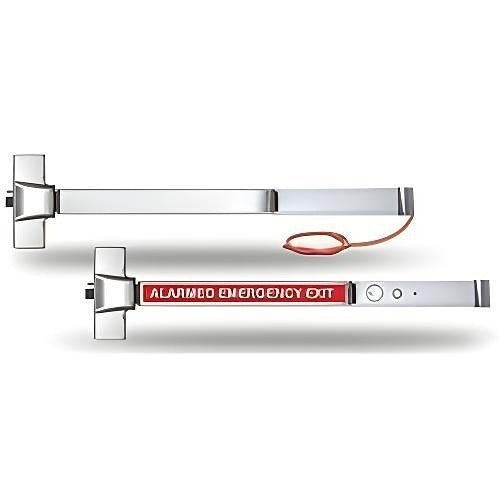

The SDC - SECURITY DOOR CONTROLS S6102PU36101ND is a rim-mount panic exit device designed for single-door egress applications in commercial and institutional buildings. Rim exit devices mount directly to the face of the door and engage a strike on the door frame, providing a reliable latching mechanism that releases with horizontal bar pressure. This unit carries a 630 finish designation, indicating a satin stainless steel appearance, and is sized for a 36-inch door. The ND function designation indicates a no-dogging configuration, meaning the latch cannot be mechanically held retracted. Installation is handled by commercial door hardware professionals or licensed locksmiths working to life-safety and building code requirements.

This exit device is suited for commercial, institutional, and light industrial single-door applications where panic hardware is required by code. The rim-mount configuration makes it applicable to hollow metal, wood, and aluminum doors where a surface-applied device is preferred or required. The 36-inch sizing fits standard commercial door widths in this category. The 630 satin stainless finish provides corrosion resistance suitable for interior and moderate-exposure environments.

Key Features

• Rim-mount design installs on the face of the door without through-door modifications to the door body
• 630 satin stainless steel finish for corrosion resistance and a clean commercial appearance
• Sized for 36-inch door width — fits standard commercial single-door openings
• No-dogging (ND) function keeps the latch active at all times, maintaining egress security
• Panic hardware operation releases the latch with horizontal push-bar pressure for compliant emergency egress

Compatibility

Designed as an OEM-style rim panic exit device for commercial single-door applications requiring surface-applied egress hardware on 36-inch doors with a 630 finish and no-dogging function.

Installation Notes

Installation should be performed by a qualified door hardware technician or licensed locksmith familiar with ANSI and applicable local building and fire codes governing panic egress hardware. Verify door preparation, strike alignment, and backset before mounting. Ensure the door and frame are plumb and square prior to installation to prevent binding or misalignment of the latch mechanism. Always confirm that the completed installation meets the egress requirements of the applicable building and fire codes before returning the opening to service.
