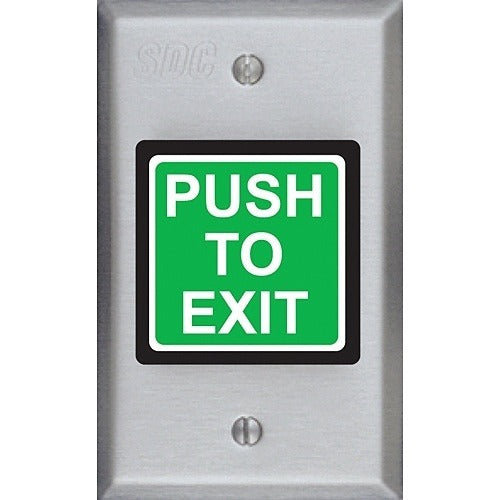

Sdc 422PL1G Exit Device Push Button Spdt

Product Description

The SDC - SECURITY DOOR CONTROLS 422PL1G is a green illuminated momentary exit device push button featuring a single-pole double-throw (SPDT) switching configuration. Designed for access control and egress applications, this unit provides a reliable, low-voltage signal to control electric strikes, magnetic locks, or access control panels. The green illuminated actuator gives a clear visual cue for egress points, making it well-suited for commercial door hardware installations. Licensed electricians and access control technicians are the typical trade professionals who install this device.

The 422PL1G is used in commercial and institutional access control systems where a hardwired momentary exit request signal is required. It fits standard single-gang electrical box cutouts and is appropriate for interior egress doors in office buildings, schools, healthcare facilities, and similar occupancies. The SPDT output provides wiring flexibility to support both normally open and normally closed circuit configurations depending on the panel or controller requirements.

Key Features

• Green illuminated actuator provides clear visual indication at egress points
• Momentary contact operation suitable for request-to-exit (REX) applications
• SPDT switching allows normally open or normally closed wiring configurations
• Compact form factor fits standard single-gang electrical box mounting
• Designed for integration with electric strikes, maglocks, and access control panels

Compatibility

Designed as an OEM-style replacement or new-installation exit push button for commercial access control and egress systems requiring a momentary SPDT contact output.

Installation Notes

Installation is typically performed by a licensed electrician or certified access control technician. Power down the access control panel and any connected door hardware before wiring. Mount to a standard single-gang electrical box and connect low-voltage wiring per the controller manufacturer requirements and applicable NEC guidelines. Verify normally open or normally closed circuit selection at the SPDT terminals before restoring power.
