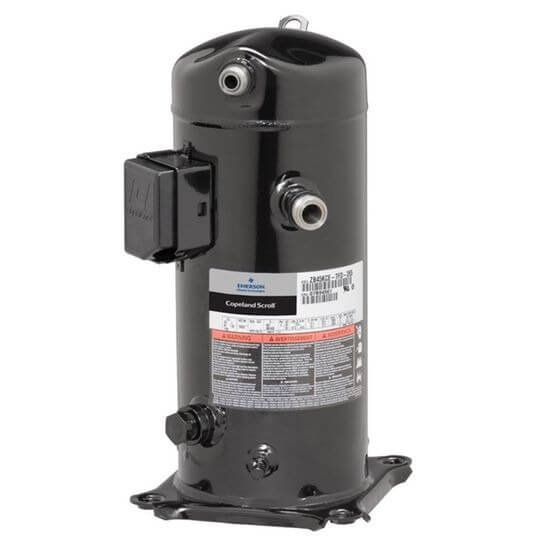

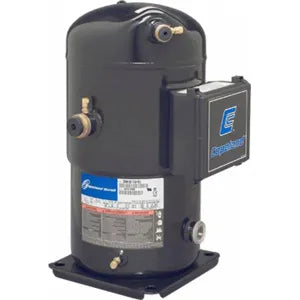

Copeland ZR108KCE-TFD-950 Aftermarket Hermetic Scroll Compressor 460/3/60 Polyol Ester Oil (POE)
In Stock - Ships via Freight in 3-5 Business Days
Secure
Ordering
Easy
Returns
100% Fit
Guarantee
Expert
Advice
Fast
Shipping
Product Information
Product Description
The Copeland ZR108KCE-TFD-950 Aftermarket Hermetic Scroll Compressor is designed for HVACR applications. Manufactured by Copeland, this compressor ensures efficient and reliable performance. The ZR108KCE-TFD-950 model runs on 460 volts, three-phase, and uses polyol ester oil (POE).
- Energy-efficient design
- Reliable performance
- Easy installation
Product Highlights
This compressor offers excellent efficiency, proven reliability, and ease of installation, making it a popular choice for HVAC professionals.
Product Information
Standard Information
- Manufacturer: Copeland
- Part #: ZR108KCE-TFD-950
Technical Specifications
- Voltage: 380-420/460 VAC
- Amps: 12.7-14
- BTU Output: 106000
- Phase: Three
- Refrigerant: R-134a; R-22; R-407C
- Compressor Type: Scroll
- Compressor Housing: Hermetic
- Oil Type: Polyolester (POE)
- Weight: 132 lbs
- Dimensions: 10.38 inches length, 11.23 inches width, 21 inches height
- Sound Level: 80-85 dBA
- UL Listed: Yes
- Protection: Internal Inherent Protection
- Mounting Dimensions: 7.5 x 7.5 x 21.75 inches
- Evaporating Temperature: 35°F, 45°F (7.22°C)
- Return Gas Temperature: 55°F, 65°F (18.33°C)
- Locked Rotor Amps (LRA): 114
- Rated Load Amps (RLA): 15.5, 17
- Cycle/Hertz: 50/60 Hz
- Discharge Connection Type: Stub
- Suction Line Fitting Type: Stub
- Suction Line Size (OD): 1-3/8 inches
- Package Dimensions: 16 inches length, 18.5 inches width, 27 inches height
Manuals
