Scp CAT6-P-PUR Cat6 Plenum 550 MHz 1000ft/305m

Product Description

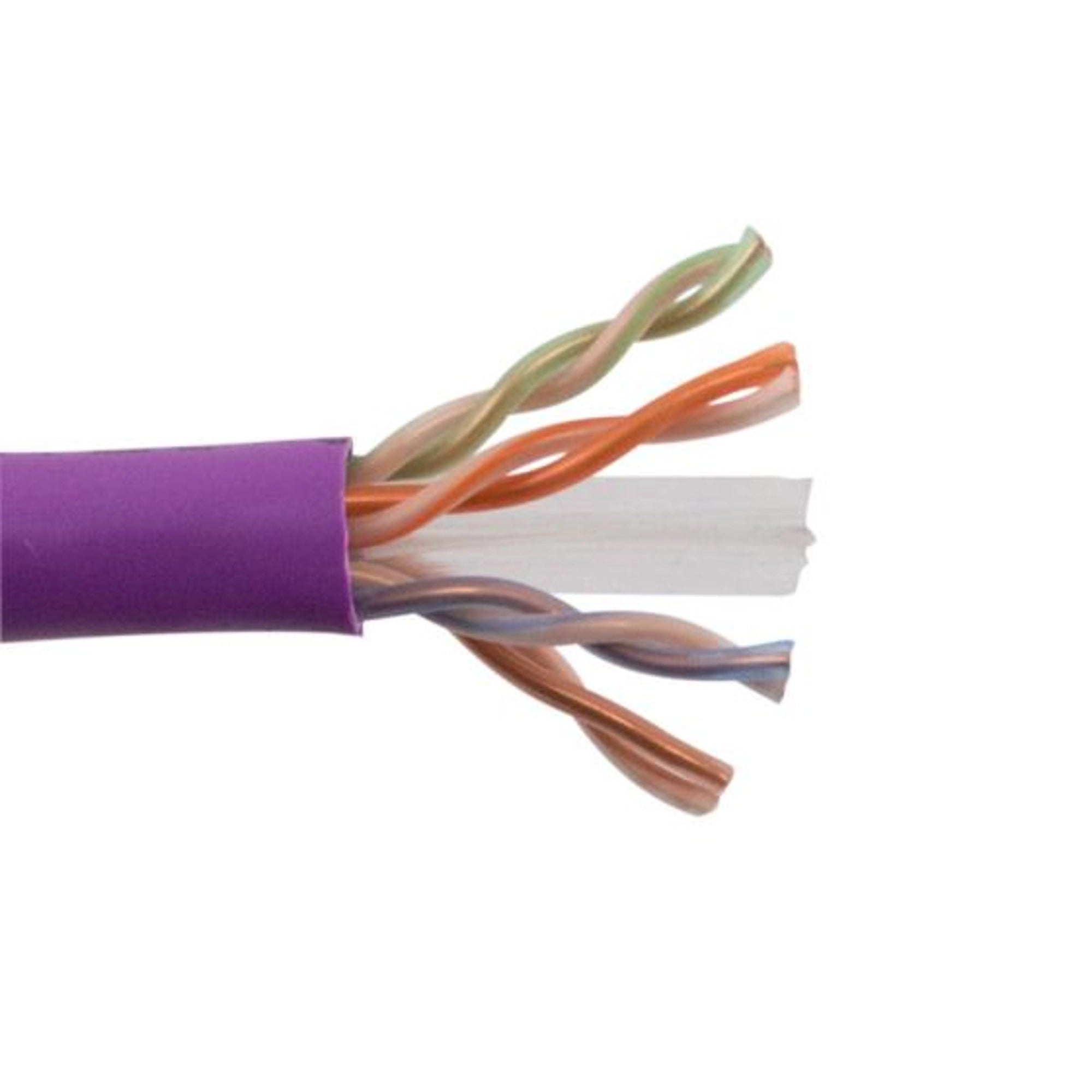

The SCP CAT6-P-PUR is a Cat6 UTP plenum cable that complies with NFPA-262, suitable for installation in ducts and plenums without conduit. Designed for fire resistance and low-smoke, it meets ANSI/TIA 568.2-D Category 6 standards. The cable features 550 MHz 23 AWG insulated solid bare copper conductors with a center spline.

• Complies with NFPA-262
• Meets ANSI/TIA 568.2-D Category 6 standards
• 550 MHz 23 AWG insulated solid bare copper conductors

Product Highlights

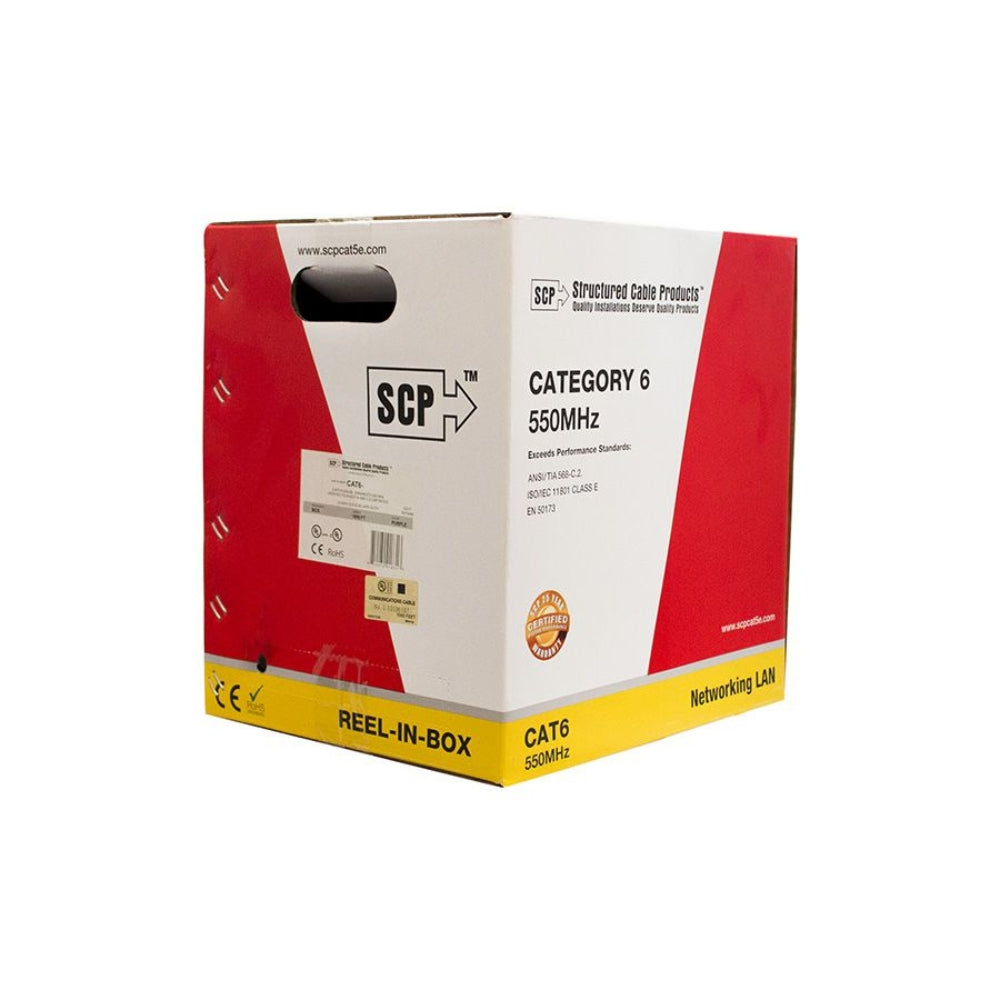

This Cat6 plenum cable is UL and CMP rated and packaged on a Reel-In-Box (RIB). Ideal for high-performance IT, LAN & Ethernet installations and suitable for use in all Class E structured wiring systems. PoE/PoH Compliant.

Product Information

Standard Information

• Brand: SCP
• Manufacturer Part Number: CAT6-P-PUR

Technical Specifications

• Category: CAT6 - Class E
• UPC/EAN: 810070018313
• Jacket Type: Plenum
• Length: 1000ft
• Cable Type: CAT6 UTP Plenum
• Frequency: 550 MHz
• Conductor Gauge: 23 AWG
• Conductor: Solid Bare Copper
• Pairs: 4PR
• Standard Compliance: ANSI/TIA 568.2-D Category 6, ISO/IEC 11801 CLASS E
• UL Rating: UL CMP FT6
