Product Description

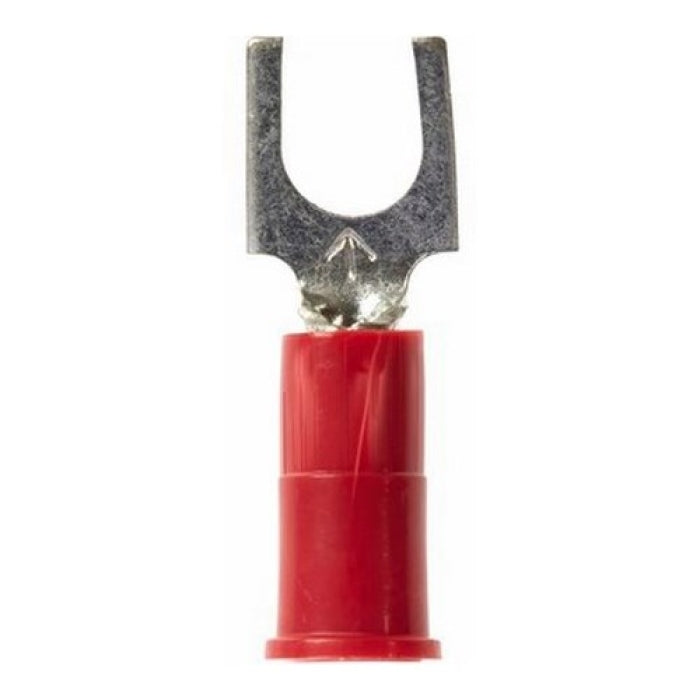

The Scotchlok MV18-10FBK is a block insulated fork terminal designed by 3M. This terminal supports conductors ranging from twenty-two to eighteen AWG.
- Vinyl insulation provides safety and reliability.
- Compatible with #10 stud size for effective connections.
- Brazed seam construction enhances strength and durability.
Product Highlights
Designed for ease of use in terminal blocks with flat sides, the Scotchlok MV18-10FBK ensures an ideal fit for secure connections.
Product Information
Standard Information
-
Manufacturer: 3M
-
Brand: Scotchlok
Technical Specifications
-
Conductor Size Range: 22 to 18 AWG
-
Stud Size: #10
-
Temperature Rating: -40 to 221 degrees F
-
Barrel Length: 0.85 inches
-
Inner Diameter: 0.07 inches
-
Insulation Type: Vinyl insulated
-
Construction Material: ETP/Electrolytic copper, tin plated
-
Standard Package Quantity: 1000 per case
