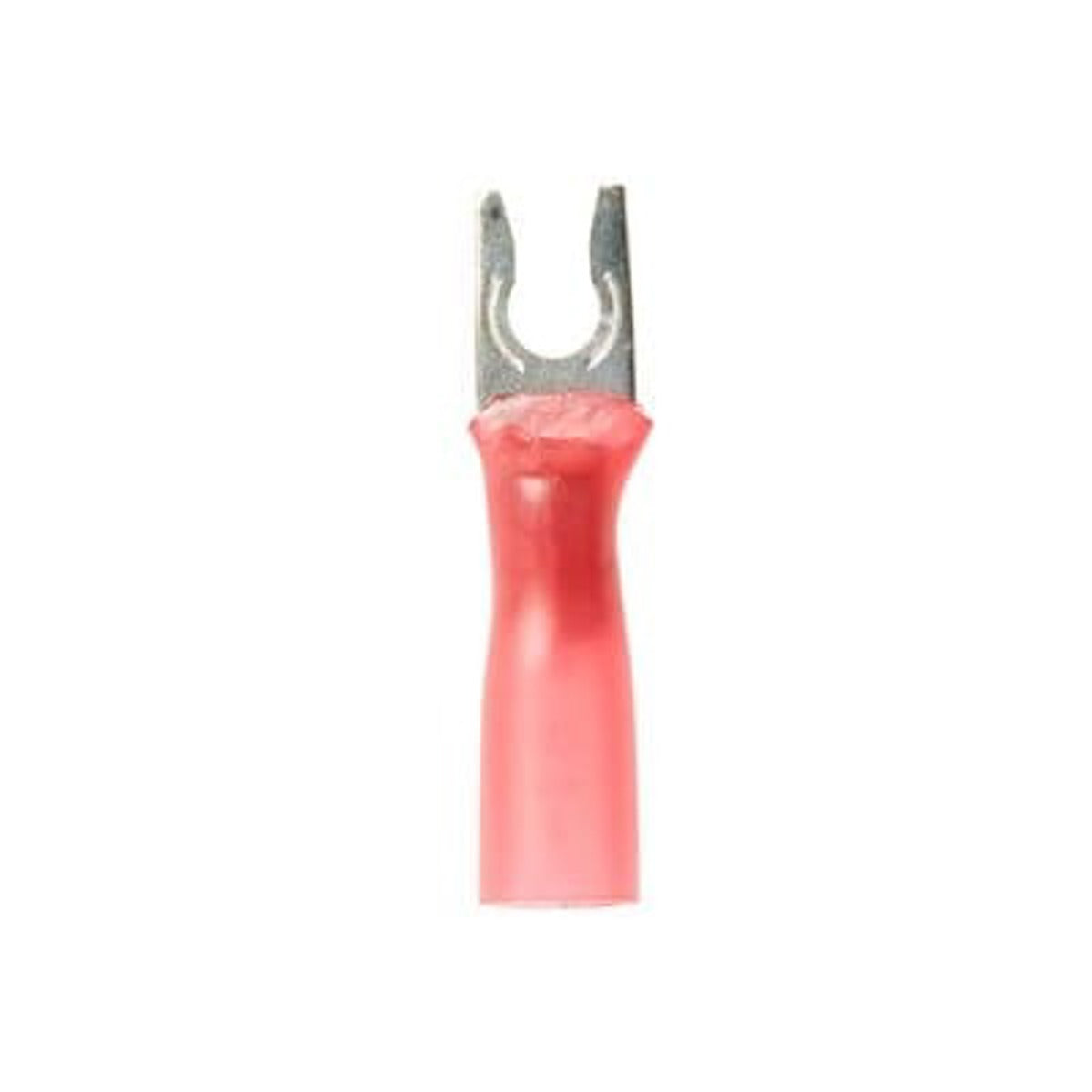

3M Scotchlok MH18-6FLX Heat Shrink Locking Fork Terminal #6
3M Scotchlok MH18-6FLX Heat Shrink Locking Fork Terminal #6

Scotchlok MH18-6FLX Heat Shrink Locking Fork Terminal #6

3M
Brand: 3M
SKU: MH18-6FLX
Availability: Out Of Stock
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The SCOTCHLOK MH18-6FLX heat shrink locking fork terminal features a spring-like tongue for secure stud locking. The brazed-seam barrel is covered by adhesive-lined polyolefin tubing, providing moisture-seal protection. Constructed from electrolytic copper with a tin-plated finish for corrosion resistance. Accommodates wire sizes 22 to 18 AWG.

  • Spring-like tongue firmly fits around the stud
  • Brazed-seam terminal ensures a secure fit and reliable performance
  • Pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt

Product Highlights

The MH18-6FLX locking fork terminal is UL Listed, CSA Certified and RoHS 2011/65/EU Compliant. It withstands a maximum temperature of 221 degrees F (105 degrees C).

Product Information

Standard Information

  • Brand: SCOTCHLOK
  • Manufacturer Part Number: MH18-6FLX
  • Country of Origin: United States
Technical Specifications
Type
Fork
Brand
Scotchlok
Width
0.25 in
Length
1 Inch
Stud Size
#6
Sub Brand
Scotchlok
Thickness
0.03 in
Barrel Type
Brazed
Barrel Length
0.76 in
Terminal Size
22 - 18 AWG
Terminal Type
Fork
Conductor Size
22-18 AWG
Overall Length
1 in
Terminal Style
Locking
Insulation Material
Heat Shrink
Max Operating Temperature
221 degrees F
Catalog Number
MH18-6FLX
Manufacturer
3M Electrical Products
Country of Origin
United States
Made in USA
Yes
Special Features
Locking
Standard
UL and CSA
Item Type
Fork
Minimum Conductor Size
22 AWG
Maximum Conductor Size
18 AWG
Insulation Type
Heat Shrink Insulated
Temperature Rating
221 Deg F
Approval
UL 486A, CSA C22.2
Voltage Rating
600 V (Building Wire), 1000 V (Signs, Fixtures)
Terminal Material
Tin Plated ETP Copper
Barrel Style
Brazed Seam
Maximum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Imperial)
18 AWG
Barrel Inside Diameter
0.070 Inch
Dimension E
0.76 Inch
Maximum Conductor Size (Metric)
.0823 mm²
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Maximum Insulation Outside Diameter
0.145 in
Maximum Operating Temperature (Celsius)
105 ℃
Maximum Recommended Voltage Rating
600 V
Minimum Conductor Size (Metric)
0.823 mm²
Overall Length (Metric)
25.4 mm
Overall Width (Metric)
6.09 mm
Part Number
MH18-6FLX
