Scotchcast 051128-61341 Inline Resin Power Cable Splice Kit 5 kV Single Conductor 1 kV Multi-Conductors

Product Description

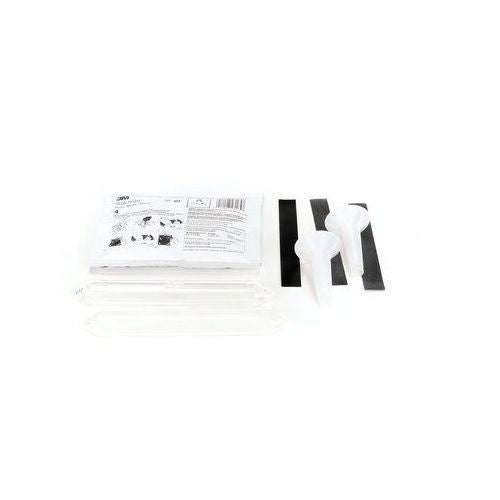

3M 051128-61341 Scotchcast inline resin power cable splice kit is made to insulate and seal both 5 kV rated unshielded single conductor cables and 1 kV rated multiple conductor cables. This kit is ideal for locations exposed to weather or for direct burial. The kit contains a mold body, pouring spouts, electrical tape, and resin. It successfully splices non-shielded cables whether they are wet or dry and accommodates both single and multiple portable cables. This product is UL listed and complies with RoHS standards.

• Insulates and seals unshielded cables
• For use in weather-exposed locations
• Rated for 5 kV single conductor and 1 kV multi-conductor cables

Product Highlights

Use this kit for reliable splicing in challenging environments.

Product Information

Standard Information

• Brand: Scotchcast
• Manufacturer: 3M

Technical Specifications

• Cable Diameter: 0.406 to 0.625 in
• Cable Type: Single Conductor/Portable
• Conductor Size: 8 to 2 AWG
• Material: Epoxy
• Voltage Rating: 5 kV Single Conductor, 1 kV Multi-Conductors
• Splice Length: 4-1/2 in
• Number of Conductors: Single/Multiple
• Series: 82-AN
