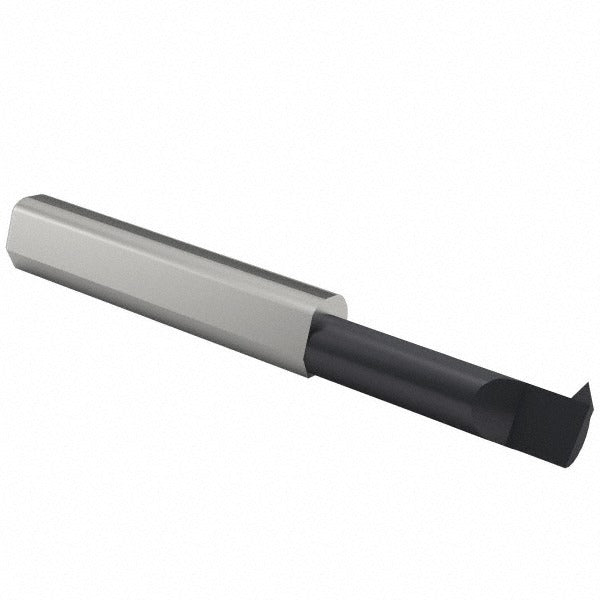

Scientific Cutting Tools TT3601000A Threading Tool 8-32 Tpi

Product Description

The SCIENTIFIC CUTTING TOOLS TT3601000A is a solid carbide single point threading tool designed for internal threading operations on CNC lathes and turning centers. It covers a range of 8 to 32 threads per inch (TPI) with a minimum threading diameter of 0.36 inches and a cutting depth of 1 inch. The tool carries a 60-degree profile angle, making it suited for standard unified and metric-profile threads. An AlTiN+ coating provides heat and wear resistance, extending tool life in ferrous and hard-material applications. The 3/8-inch shank and 2.5-inch overall length fit standard toolholders common in production and job-shop turning environments.

This tool is intended for internal threading passes on bores at or above 0.36 inches in diameter. It is used by machinists in production turning, toolroom work, and repair environments where single-point threading is preferred over taps for thread quality control or for threading difficult materials. The 1-inch cut depth accommodates most standard bore-depth threading requirements encountered in general machining. The 0.08-inch projection from the edge provides clearance geometry suited to through and blind-bore applications within the stated TPI range.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding materials
• AlTiN+ coating reduces heat buildup and extends tool life in ferrous and alloy applications
• 60-degree profile angle compatible with standard unified thread forms
• 8 to 32 TPI range covers a wide selection of common internal thread sizes
• 0.36-inch minimum threading diameter suits small-to-mid-range bore work
• No coolant-through design - external coolant or dry cutting applications

Compatibility

Designed for use in CNC lathes and turning centers accepting a 3/8-inch shank toolholder, for internal single-point threading operations in the 8 to 32 TPI range with a minimum bore diameter of 0.36 inches.

Installation Notes

Installation is performed by qualified machinists following standard CNC toolholding procedures. Ensure the machine spindle is fully stopped and the turret is in a safe index position before seating or removing the tool. Confirm shank seating depth and tool projection match the programmed threading cycle parameters before running. This tool does not support coolant-through delivery - direct external coolant at the cutting zone if coolant is used.
