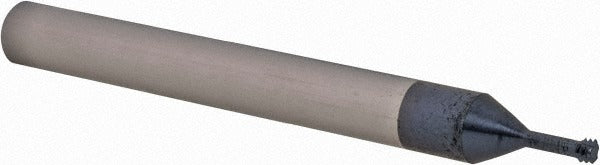

Scientific Cutting Tools TMLR3-.5MMA Thread Mill M3x0.5

Product Description

The SCIENTIFIC CUTTING TOOLS TMLR3-.5MMA is a long-reach, helical flute thread mill designed for cutting internal M3 x 0.50 metric coarse threads in solid carbide construction. It features three right-hand flutes, a cutting diameter of 0.09 inches, and a length of cut of 0.225 inches. The submicron carbide grade provides the hardness and wear resistance needed for precision threading in ferrous and non-ferrous materials. An AlTiN+ coating reduces heat buildup and extends tool life in demanding production environments. This tool is installed by machinists and toolroom professionals running CNC machining centers.

This thread mill is suited for internal threading operations where a standard tap cannot be used, including blind holes, hard materials, and applications requiring a single tool to produce multiple thread sizes close to the nominal diameter. With a minimum nominal diameter of 0.1181 inches (3.00 mm) and an overall length of 2.5 inches, it provides the reach and clearance needed for deep-pocket or restricted-access threading. It is appropriate for both prototype and production runs in aerospace, automotive, and general machining environments.

Key Features

• Long-reach design allows threading in deep pockets and restricted-access bores
• Three helical flutes provide smooth chip evacuation during internal thread milling
• AlTiN+ coating reduces friction and thermal buildup for extended tool life
• Submicron solid carbide grade delivers rigidity and wear resistance
• Right-hand flute direction compatible with standard CNC thread milling cycles
• No coolant-through design - suitable for external coolant or dry machining setups

Compatibility

Designed for CNC machining centers capable of helical interpolation thread milling cycles. Produces internal M3 x 0.50 metric coarse threads. Minimum bore diameter for this tool is 0.1181 inches (3.00 mm).

Installation Notes

Installation and operation of this thread mill requires a CNC machining center with helical interpolation capability. Secure the 0.25-inch shank in a collet chuck or end mill holder rated for the required runout tolerance before use. Verify spindle speed, feed rate, and helical pitch programmed in the CNC cycle match the M3 x 0.50 thread specification. Do not use this tool in manual drill press or non-interpolating applications.
