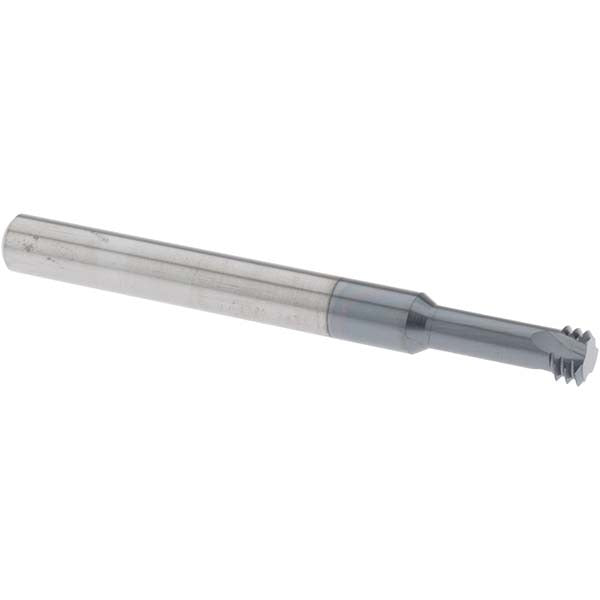

Scientific Cutting Tools TMLR234-24A Thread Mill 5/16-24

Product Description

The SCIENTIFIC CUTTING TOOLS TMLR234-24A is a solid carbide helical flute thread mill designed for cutting internal UNF threads in machined components. Built from submicron carbide and coated with AlTiN+, it handles demanding materials and elevated cutting temperatures in production environments. The tool produces 5/16-24 UNF internal threads with a 0.234-inch cutting diameter and a 0.6-inch length of cut. A long-reach design and 2.5-inch overall length make it suitable for applications where standard-reach tooling falls short. This mill is installed and run by machinists and CNC programmers working in precision metalworking, aerospace, automotive, and general manufacturing settings.

This thread mill is intended for internal threading operations on CNC machining centers. The 3-flute, right-hand helical geometry supports stable cutting and consistent thread form. With a 1/4-inch shank diameter and 2.5-inch overall length, it fits standard ER and set-screw style toolholders commonly used in vertical and horizontal machining centers. The long-reach configuration allows access to threads in deeper bores or stepped features where short-reach tooling cannot reach the full thread depth.

Key Features

• Solid submicron carbide construction for rigidity and wear resistance in hard and abrasive materials
• AlTiN+ coating provides high heat resistance and extended tool life in dry or semi-dry cutting conditions
• 3 right-hand helical flutes for smooth chip evacuation and stable thread form
• Long-reach design with 2.5-inch overall length for deep-bore and stepped-feature applications
• Cuts 5/16-24 UNF internal threads at 24 TPI with a 0.234-inch cutting diameter
• No coolant-through requirement - suitable for external flood coolant or dry cutting setups

Compatibility

Designed for use in CNC machining centers with standard 1/4-inch shank toolholders for internal UNF thread milling applications requiring a 5/16-24 thread form.

Installation Notes

Installation and operation should be performed by qualified machinists or CNC programmers familiar with thread milling cycles. Secure the 1/4-inch shank in a properly sized, clean toolholder and verify runout before cutting. Program the tool with a helical interpolation thread milling cycle appropriate for the CNC control in use. Do not exceed manufacturer-recommended speeds and feeds for the workpiece material and coating type.
