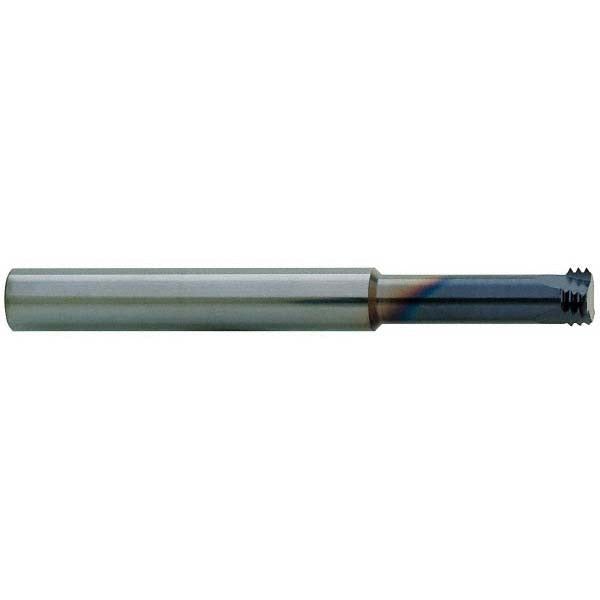

Scientific Cutting Tools TMLR186-20ELA Thread Mill 1/4-20

Product Description

The SCIENTIFIC CUTTING TOOLS TMLR186-20ELA is a solid carbide helical flute thread mill designed for cutting internal 1/4-20 UNC threads in a CNC machining environment. It features a 0.186-inch cutting diameter, a 0.7-inch length of cut, and an overall length of 2.5 inches. The three-flute, right-hand geometry combined with an AlTiN+ coating supports extended tool life in ferrous and hardened materials. The submicron carbide grade provides edge stability under demanding cutting conditions. Licensed machinists and CNC operators are the primary users of this tool.

This thread mill is suited for internal thread milling applications in production and job-shop environments where a single tool must produce a clean 1/4-20 UNC thread form. The long-reach design allows access to threads in deeper bores or recessed features. With a 1/4-inch shank diameter, it mounts directly into standard ER or shrink-fit toolholders commonly found on vertical and horizontal machining centers. No coolant-through capability is present, so flood or mist coolant is applied externally during operation.

Key Features

• Solid submicron carbide construction for edge stability and wear resistance
• AlTiN+ coating extends tool life in ferrous, stainless, and hardened workpiece materials
• Three right-hand flutes for efficient chip evacuation on internal thread forms
• Long-reach thread mill type allows threading in deeper or recessed bore locations
• Cuts 1/4-20 UNC internal threads at 20 teeth per inch with a 0.186-inch cutting diameter
• 0.7-inch length of cut accommodates standard thread depth requirements for this thread size

Compatibility

Designed for use in CNC machining centers equipped with standard 1/4-inch shank toolholders for internal thread milling of 1/4-20 UNC thread forms.

Installation Notes

This tool is installed and operated by CNC machinists using standard ER collet or shrink-fit toolholding systems. Confirm runout at the toolholder before operation, as excessive runout accelerates edge wear on carbide thread mills. Spindle speed and feed rate should be calculated using the manufacturer-recommended surface footage for the workpiece material and coating type. No coolant-through ports are present; direct external coolant or mist at the cutting zone throughout the operation.
