Scientific Cutting Tools TM450-14BSPP-A Thread Mill 4 Flute Carbide

Product Description

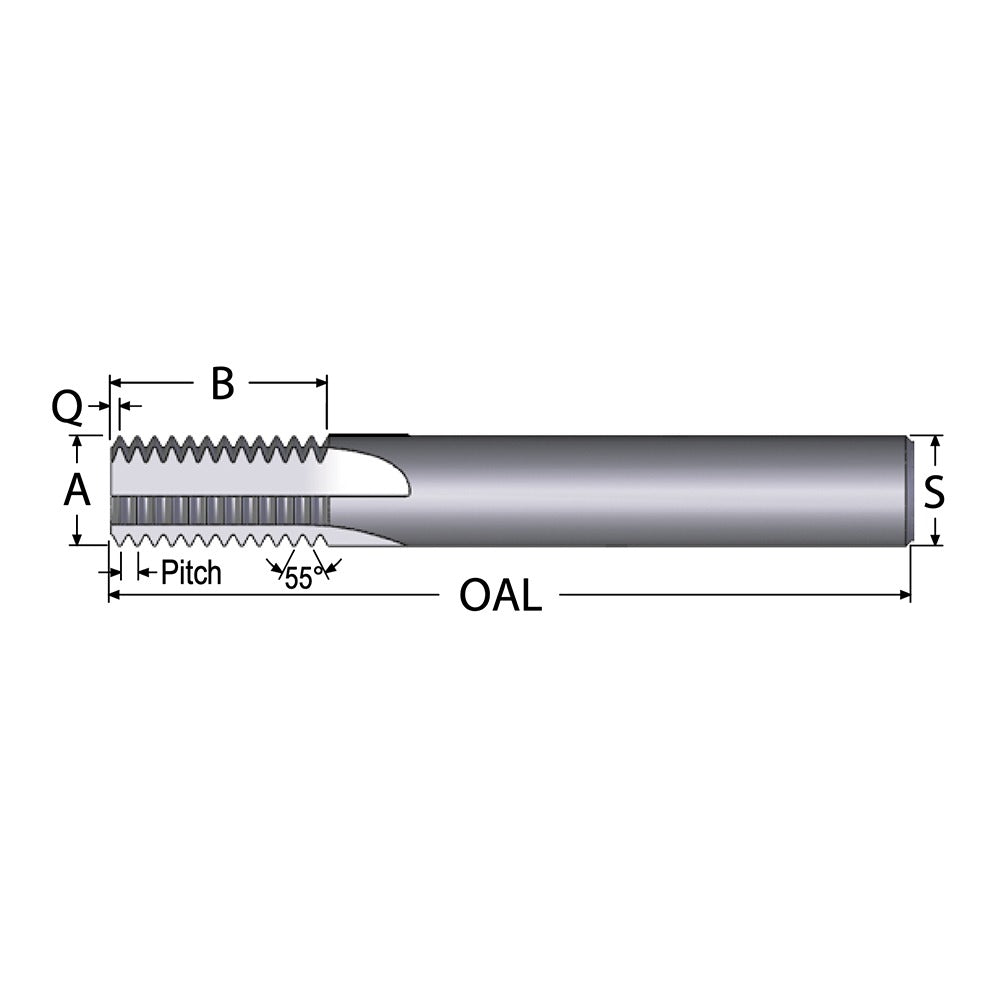

The SCIENTIFIC CUTTING TOOLS TM450-14BSPP-A is a straight flute thread mill designed for cutting both external and internal BSPP threads in a single tool. Built from submicron-grade solid carbide and coated with AlTiN+, it handles demanding thread milling operations in ferrous and non-ferrous materials. The tool runs 4 flutes, a 0.45 inch cutting diameter, and a 14 TPI thread pitch, making it suited for BSPP pipe thread profiles. It carries a 1/2 inch shank diameter and a 1.1 inch length of cut, giving machinists the reach and rigidity needed for accurate thread form on CNC machining centers.

This thread mill is used in precision machining environments where BSPP pipe threads are required on fittings, manifolds, valve bodies, and fluid system components. The straight flute geometry is appropriate for stable, vibration-reduced threading in short-chipping materials. At 3.5 inches overall length with a 1/2 inch shank, it fits standard ER and side-lock toolholders on vertical and horizontal machining centers. Machinists working in fluid power, pneumatics, and hydraulic component manufacturing will find this tool suitable for production threading where thread quality and repeatability matter.

Key Features

• Cuts both external and internal BSPP threads with a single tool
• Submicron-grade solid carbide substrate for extended tool life in hard materials
• AlTiN+ coating improves heat resistance and wear performance at elevated cutting speeds
• Straight flute design provides stability in short-chipping workpiece materials
• 14 TPI thread pitch matches standard BSPP pipe thread specifications
• No coolant-through requirement simplifies setup on standard machining centers

Compatibility

Designed for use on CNC machining centers capable of helical interpolation; compatible with standard 1/2 inch shank toolholders including ER collet chucks and side-lock holders. Intended for BSPP thread milling applications as specified by the BSPP thread standard.

Installation Notes

Thread milling with this tool requires a CNC control capable of helical interpolation. Confirm correct toolholder runout before starting - excessive runout will degrade thread form and reduce tool life. Ensure the workpiece is rigidly fixtured and that spindle speed and feed rate are programmed per the carbide thread milling parameters for the workpiece material. Do not use this tool for tapping operations.
