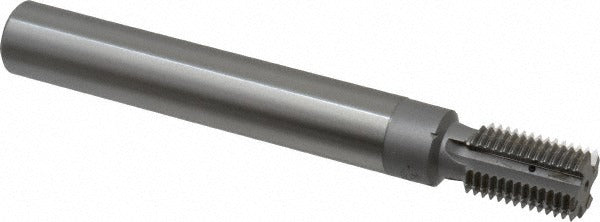

Scientific Cutting Tools Tm 24-2MM Thread Mill M24 X 2.00

Product Description

The SCIENTIFIC CUTTING TOOLS TM 24-2MM is a straight flute internal thread mill designed for cutting M24 x 2.00 metric fine threads in ferrous and non-ferrous workpieces. The tool features a carbide tipped construction with a submicron material grade, delivering edge retention and dimensional accuracy in production environments. With 4 straight flutes, a 0.74 inch cutting diameter, and a 1.1 inch length of cut, it is suited for threading operations where rigid setups and CNC milling capability are available. Machinists and toolroom technicians working in metalworking, aerospace, automotive, and general manufacturing applications will find this tool a reliable choice for internal metric thread milling.

This thread mill is intended for internal threading applications requiring M24 x 2.00 metric fine thread form. The 3/4 inch shank diameter fits standard ER or end mill holders commonly found on CNC machining centers. With a 6 inch overall length, the tool can reach into deeper bores and fixtures where clearance is a factor. The bright finish indicates no additional coating, which is suitable for general-purpose machining where coating interaction with workpiece material is a consideration. It is packaged and sold individually.

Key Features

• Cuts M24 x 2.00 metric fine internal threads in a single helical pass
• Carbide tipped construction with submicron material grade for extended tool life
• 4 straight flutes provide clean thread form without staggered tooth geometry
• 0.74 inch cutting diameter with 1.1 inch length of cut accommodates standard M24 bore depths
• 3/4 inch shank diameter fits common CNC end mill and ER collet holders
• Bright finish with no coolant-through - suited for flood or mist coolant applied externally

Compatibility

Designed for use in CNC machining centers capable of helical interpolation; compatible with standard 3/4 inch end mill holders, ER collet chucks, and similar toolholding systems used for internal thread milling of M24 x 2.00 metric fine threads.

Installation Notes

Thread milling requires a CNC machine with helical interpolation capability - confirm machine compatibility and program the correct thread helix direction before use. Secure the 3/4 inch shank in a properly torqued, clean toolholder to minimize runout, as runout directly affects thread form accuracy. Do not use this tool for tapping or non-interpolated operations. Apply flood or mist coolant externally, as this tool does not support coolant-through delivery.
