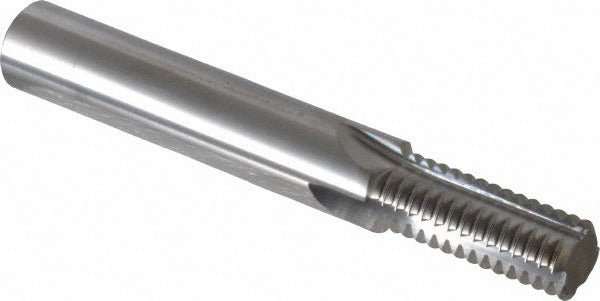

Scientific Cutting Tools Tm 14-2MM Thread Mill M14 X 2.00

Product Description

The SCIENTIFIC CUTTING TOOLS TM 14-2MM is a straight flute thread mill designed for cutting internal metric coarse threads in a single helical interpolation pass. Built from submicron-grade solid carbide, it delivers the rigidity and edge retention required for threading operations in ferrous and non-ferrous workpiece materials. The tool features 4 flutes, a 0.45-inch cutting diameter, and a 1.134-inch length of cut, making it well suited for M14 x 2.00 mm thread profiles in moderate-depth bores. The bright finish indicates no additional coating, which is appropriate for applications where coating thickness tolerances are a concern. Machinists and toolroom professionals select this mill when thread quality and geometric accuracy are the priority.

This thread mill is applied in CNC machining centers performing internal threading operations to the M14 x 2.00 mm metric coarse standard. It is suited for job shops, production machining, mold and die work, and maintenance toolrooms where a reliable carbide thread mill is required for isolated or small-batch threading cycles. The 0.5-inch shank diameter seats in standard ER or milling collet toolholders, and the 3.5-inch overall length provides sufficient reach for most standard workpiece setups without excessive overhang.

Key Features

• Cuts M14 x 2.00 mm metric coarse internal threads in a single CNC interpolation pass
• Submicron-grade solid carbide construction for edge retention and dimensional stability
• 4 straight flutes with bright finish - no coating buildup affecting thread tolerance
• 0.5-inch shank diameter compatible with standard ER collet and milling toolholders
• 1.134-inch length of cut accommodates typical thread depth requirements for M14 applications
• No coolant-through design - suitable for flood or mist coolant delivery at the spindle

Compatibility

Designed for use in CNC machining centers capable of helical interpolation for internal thread milling operations targeting the M14 x 2.00 mm metric coarse thread standard.

Installation Notes

Thread mills of this type are installed by machinists or toolroom technicians in CNC machining centers using appropriate collet or end mill toolholders; ensure runout is minimized at setup to maintain thread quality. Power down the machine and follow lockout/tagout procedures before tool changes. Program helical interpolation paths to the correct pitch and direction for the M14 x 2.00 mm thread specification; consult the CAM system or control documentation for canned threading cycles. Inspect the cutting edges before each use - solid carbide tools are brittle and should not be used if chipping is present.
