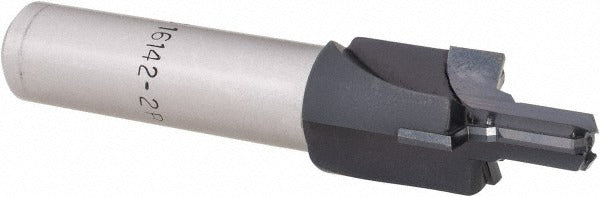

Scientific Cutting Tools SAEJ1926-02RA Porting Tool Reamer

Product Description

The SCIENTIFIC CUTTING TOOLS SAEJ1926-02RA is a porting tool reamer designed for precision spotface and pilot operations on hydraulic and fluid-power tube fittings. It features a 0.682-inch spotface diameter and accepts 1/8-inch tube outside diameter connections, making it the correct tool for Tube Dash 2 applications. The reamer pilot ranges from 0.271 inches minimum to 0.361 inches maximum pilot diameter, with a pilot length of 0.397 inches. Three straight flutes and an AlTiN+ coating deliver clean, repeatable cuts in steel and similar workpiece materials. Overall length is 3 inches, and the 1/2-inch shank seats securely in standard tooling setups.

This porting tool is used when preparing port faces and bores to meet SAE J1926, SAE J514, and MS 16142 standards in hydraulic systems, fluid power circuits, and pneumatic lines. It is suited for both production shop environments and field maintenance situations where tube fitting ports require accurate spotfacing before connector installation. Machinists, hydraulic system technicians, and fluid power specialists are the primary installers of this tool.

Key Features

• 0.682-inch spotface diameter sized for Tube Dash 2, 1/8-inch tube OD fittings
• Reamer pilot type with 0.271-inch minimum and 0.361-inch maximum pilot diameter for precise bore alignment
• AlTiN+ coating for improved wear resistance and tool life in ferrous and hardened materials
• Three straight flutes for controlled chip evacuation and consistent surface finish
• 12-degree seal angle and UNF thread type compatibility per SAE J1926 and SAE J514 standards
• 1/2-inch shank diameter and 1.75-inch shank length for secure chuck or collet engagement

Compatibility

Designed for use on tube fitting ports conforming to SAE J1926, SAE J514, and MS 16142 standards, specifically for 1/8-inch tube outside diameter, Tube Dash 2 applications.

Installation Notes

This tool is installed and operated by machinists or hydraulic system technicians using a drill press, milling machine, or compatible hand-held power tool with a 1/2-inch chuck or collet. Ensure the workpiece is fully de-pressurized and secured before beginning any porting or spotfacing operation. Follow applicable fluid power industry standards and shop safety procedures when operating cutting tools. Inspect the pilot and cutting edges for wear before each use to ensure dimensional accuracy.
