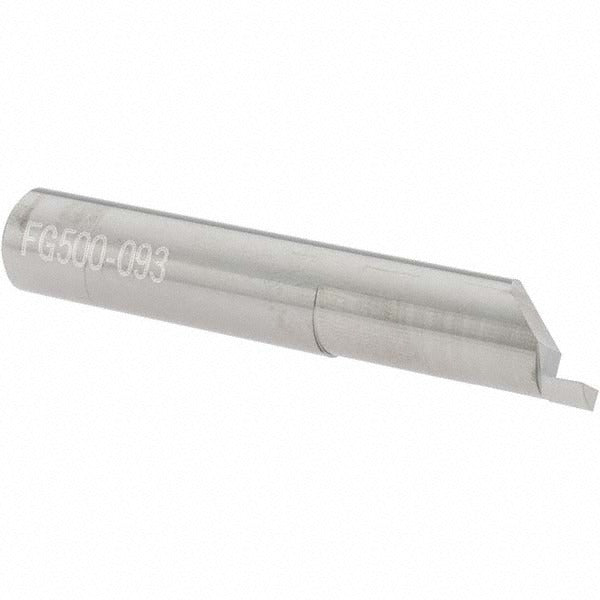

Scientific Cutting Tools FG500-093 Face Grooving Tool

Product Description

The SCIENTIFIC CUTTING TOOLS FG500-093 is a solid carbide face grooving tool designed for internal grooving operations on bore walls and recesses. Built from submicron carbide stock, it delivers the edge retention and rigidity needed for precision groove profiles in ferrous and non-ferrous materials. The shank diameter is 0.5 inches, overall length is 3 inches, and the groove width is 0.094 inches. This tool is intended for use on CNC lathes and manual turning centers by machinists and tooling professionals requiring repeatable, tight-tolerance groove geometry.

The FG500-093 is suited for face grooving in bores with a minimum hole diameter of 0.51 inches. Maximum hole depth reach is 0.19 inches, making it appropriate for shallow face groove applications in production or job-shop turning environments. The solid carbide construction makes it a reliable choice when working with materials that demand a rigid, non-deflecting cutting tool.

Key Features

• Solid submicron carbide construction for superior edge retention and rigidity
• Groove width of 0.094 inches for precise, repeatable face groove profiles
• 0.5 inch shank diameter fits standard lathe and turning center toolholders
• 3 inch overall length provides reach while maintaining stiffness
• Minimum bore entry of 0.51 inches suits small-diameter internal grooving
• Maximum hole depth of 0.19 inches targeted at shallow face groove applications

Compatibility

Designed as an OEM-style replacement or direct-fit tooling option for CNC lathes and turning centers accepting 0.5 inch shank face grooving tools.

Installation Notes

This tool is installed by machinists and tooling technicians on turning centers or manual lathes. Secure the shank fully in the toolholder to the manufacturer-recommended engagement depth before beginning cuts. Ensure the machine spindle is fully stopped and locked out before changing or adjusting the tool. Do not exceed the rated maximum hole depth to avoid tool deflection or breakage.
