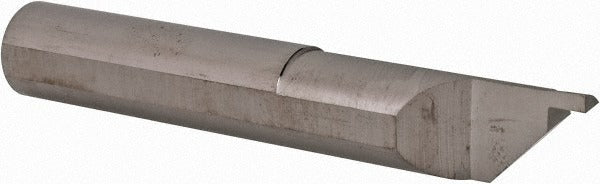

Scientific Cutting Tools FG375-062 Face Grooving Tool

Product Description

The SCIENTIFIC CUTTING TOOLS FG375-062 is a solid carbide face grooving tool designed for internal face grooving operations on CNC lathes and turning centers. Built from submicron-grade solid carbide, it delivers the rigidity and edge retention required for precise groove geometry in bores starting at 0.385 inches minimum diameter. The tool measures 2.5 inches in overall length with a 3/8 inch shank diameter, and cuts a groove width of 0.063 inches to a maximum hole depth of 0.130 inches. It is typically installed and operated by machinists and toolroom professionals working in production or job-shop turning environments.

This face grooving tool is suited for residential and commercial machining applications where internal face grooves are required in small-bore workpieces. Typical use cases include creating retaining ring grooves, seal grooves, and stepped face features inside bored holes. The 0.385 inch minimum hole diameter makes it well-suited for tight-bore work on precision components in aerospace, hydraulic, and general industrial manufacturing.

Key Features

• Submicron-grade solid carbide construction for superior hardness and edge retention
• 0.063 inch groove width for precise, repeatable face groove cutting
• 3/8 inch shank diameter compatible with standard boring bar holders and tool blocks
• 0.385 inch minimum bore entry diameter enables grooving in small, tight bores
• Maximum hole depth of 0.130 inches suits shallow face groove applications
• 2.5 inch overall length provides balanced reach and rigidity on the turret

Compatibility

Designed as an OEM-style replacement and standard fit for CNC lathes and turning centers accepting 3/8 inch shank face grooving toolholders.

Installation Notes

Installation and setup should be performed by a qualified machinist following the machine tool manufacturer guidelines. Ensure the machine spindle is fully stopped and the turret is in a safe index position before mounting or adjusting the tool. Secure the shank firmly in the toolholder to the holder manufacturer specified clamping torque to prevent deflection during the grooving pass. Verify runout and tool height alignment before engaging the cut to protect both the tool and the workpiece.
