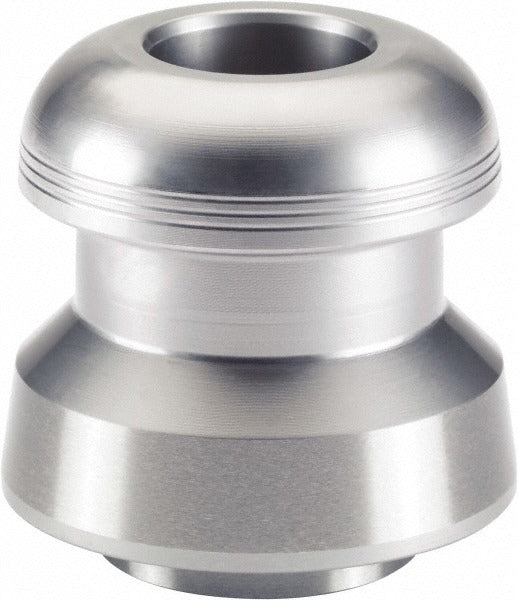

Schunk 471153 Clamping Pin M10 Stainless Steel Spc 40

Product Description

The SCHUNK 471153 is a stainless steel clamping pin designed for use with M10 screws, belonging to the SPC 40 series. Clamping pins serve as precision workholding components, securing workpieces or fixtures to machine tables, pallets, and modular fixturing systems. The 471153 is machined to tight tolerances and finished in stainless steel for corrosion resistance in coolant-heavy or washdown environments. This component is installed by machinists, tooling engineers, and fixture builders working in precision manufacturing, CNC machining centers, and production fixturing setups. The SPC 40 series designation indicates compatibility with the corresponding SCHUNK modular clamping system platform.

The 471153 is suited for use in modular workholding and zero-point clamping systems where repeatable, accurate part location is required. Typical applications include fixture plates, palletized machining setups, and transfer line tooling in both job shop and high-volume production environments. The stainless steel construction makes it a reliable choice in environments where mild steel components would be subject to corrosion from cutting fluids or humidity.

Key Features

• Compatible with M10 screws for secure fastening in SPC 40 clamping systems
• Stainless steel construction provides corrosion resistance in wet machining environments
• Part of the SPC 40 series for integration with SCHUNK modular fixturing platforms
• Compact form factor suited for dense fixture plate layouts
• Single-unit packaging with no minimum order quantity restriction above one piece

Compatibility

Designed for use within the SCHUNK SPC 40 series modular clamping system and compatible with M10 screw fastening interfaces.

Installation Notes

Installation is typically performed by a machinist or tooling technician during fixture assembly or changeover. Ensure the mating clamping module and fixture plate are clean and free of chips or debris before seating the clamping pin. Torque the M10 fastener according to the fixture system documentation provided by SCHUNK. Verify alignment and seating before applying clamping force or initiating a machining cycle.
