Schunk 471025 Rectangular Aluminum Cnc Clamping Pallet

Product Description

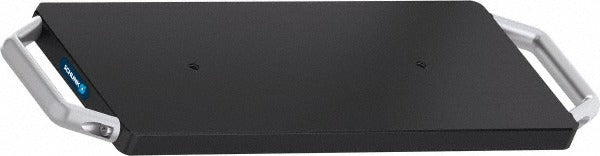

The SCHUNK 471025 is a rectangular aluminum CNC clamping pallet designed for use in automated and manual machining workholding systems. The pallet measures 6.26 inches wide by 15.71 inches long by approximately 0.98 inches thick and weighs 11.22 pounds. Machined from aluminum, it provides a rigid, low-mass fixturing surface suited for repeated part loading and unloading cycles. CNC machinists and tooling setup technicians install this pallet as part of a modular pallet system, where consistent datum positioning is critical to maintaining part tolerances across multiple operations.

This pallet is intended for use in machine shop environments running horizontal or vertical machining centers that incorporate a compatible modular pallet or zero-point clamping interface. The rectangular geometry suits elongated workpieces or multi-fixture layouts. It is commonly used in production environments where quick changeover between setups is required, reducing spindle downtime and improving throughput. The aluminum construction keeps pallet weight manageable on machines with limited table load capacity.

Key Features

• Rectangular profile at 6.26 inches wide by 15.71 inches long for elongated fixturing layouts
• 25 mm plate thickness provides a stable, rigid clamping surface
• Aluminum construction reduces pallet weight while maintaining structural integrity
• Designed for modular pallet systems requiring consistent, repeatable datum registration
• 11.22 pound weight supports use on machines with moderate table load ratings

Compatibility

Designed as an OEM-style modular clamping pallet for use with compatible CNC workholding and pallet change systems requiring a rectangular aluminum plate in this size range.

Installation Notes

Installation of this pallet should be performed by a qualified CNC machinist or tooling technician familiar with the pallet interface system in use. Power down and lock out the machining center before mounting or removing any pallet components. Verify that all mating surfaces are clean and free of chips or debris before seating the pallet to ensure accurate datum registration. Follow the machine tool manufacturer's torque and clamping specifications for the fasteners and clamping elements used with this pallet.
