Schunk 432469 Vise Jaw Flat Soft Moveable Ksc 125

Product Description

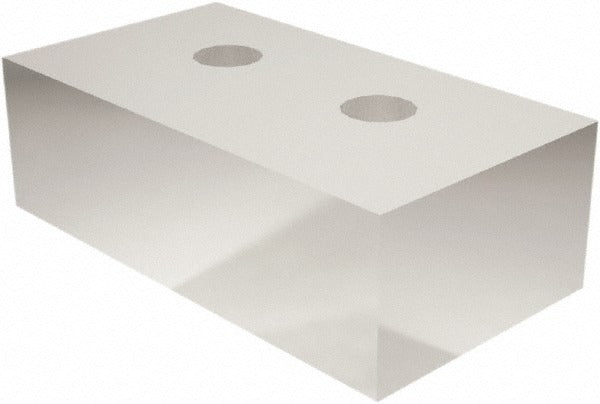

The SCHUNK 432469 is a flat soft moveable vise jaw designed for precision workholding applications in machining and manufacturing environments. Constructed from aluminum, it measures 125 mm wide, 100 mm high, and 68 mm thick, offering a robust contact surface suitable for clamping finished or semi-finished parts without marring the workpiece. The soft jaw construction allows machinists and toolroom technicians to machine custom profiles directly into the jaw face for repeatable, part-specific fixturing. Attachment is bolt-on, and the jaw mounts with a hole center spacing of 1.97 inches. Typical installation is performed by CNC machinists, setup technicians, or tool and die professionals.

This jaw is engineered for use with the SCHUNK KSC 125 vise system. It functions as the moveable jaw in that assembly, providing the clamping force side of the workholding setup. Soft jaw configurations are common in production environments where multiple identical parts must be held securely and repeatably without surface damage. The aluminum material keeps reciprocating mass low, which is relevant in high-cycle or automated machining cells.

Key Features

• Flat jaw profile suitable for parallel-sided workpieces and as a blank for custom machining
• Soft aluminum construction allows on-site jaw profiling for custom part nesting
• Moveable jaw configuration provides the active clamping side of the vise assembly
• Bolt-on attachment method for secure, repeatable mounting
• Mount hole center spacing of 1.97 inches for direct fit to compatible vise bodies
• Lightweight aluminum build reduces moving mass in high-cycle applications

Compatibility

Designed for use with the SCHUNK KSC 125 vise system as the moveable jaw component.

Installation Notes

Installation is performed by a machinist or toolroom technician with standard hand tools. Power down and de-energize any automated clamping or hydraulic system before removing or installing vise jaws. Bolt-on fasteners should be torqued evenly and in sequence; refer to the SCHUNK KSC 125 documentation for fastener specifications. Confirm jaw seating and alignment before returning the vise to service.
