Product Description

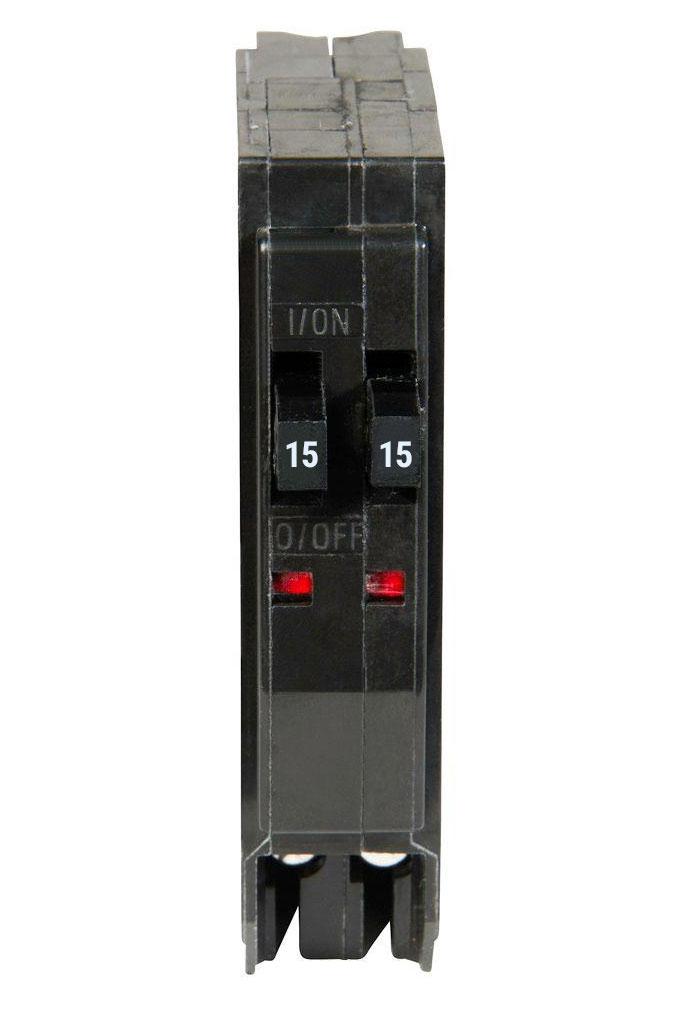

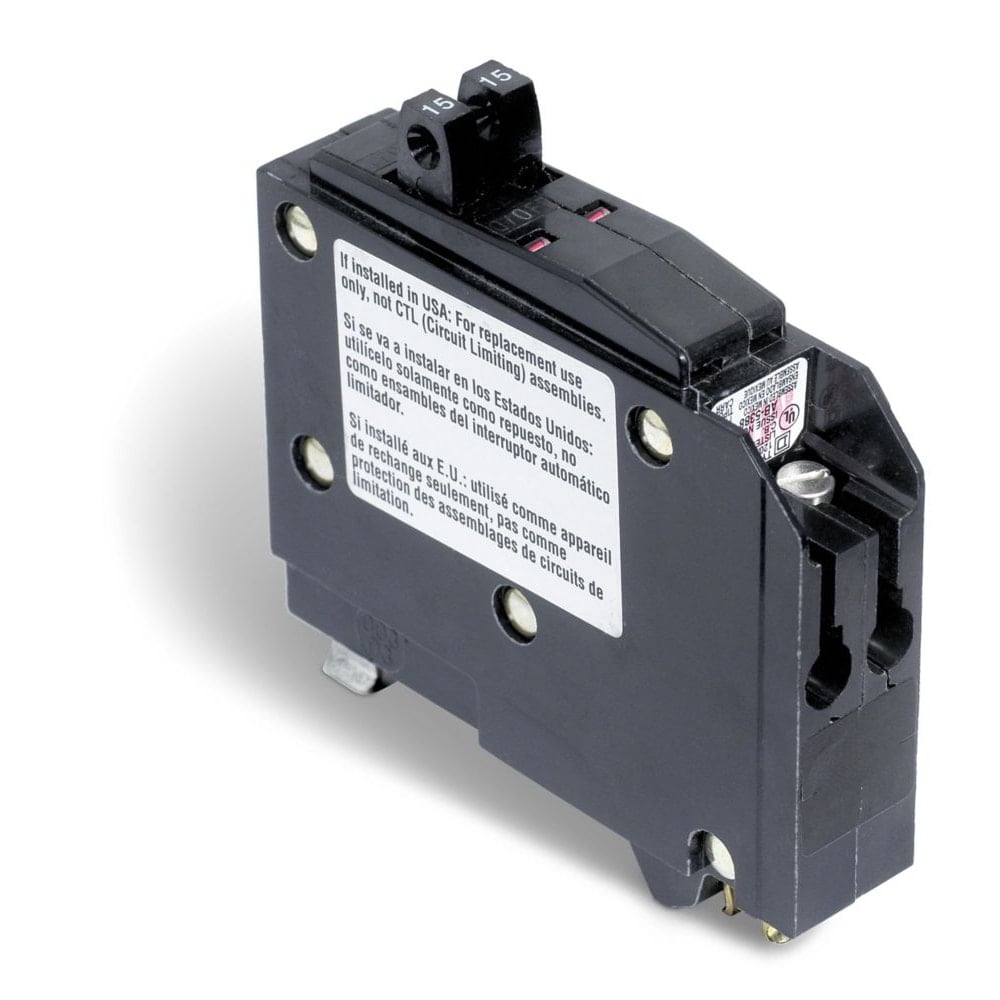

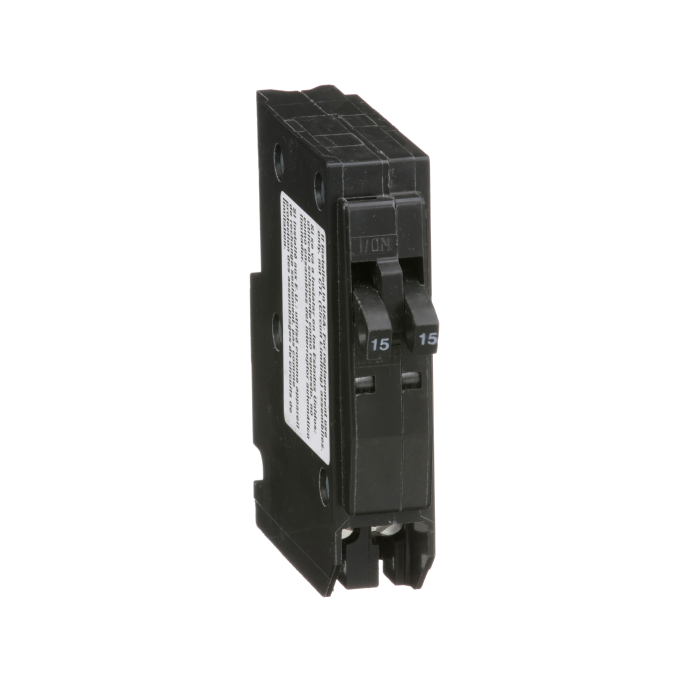

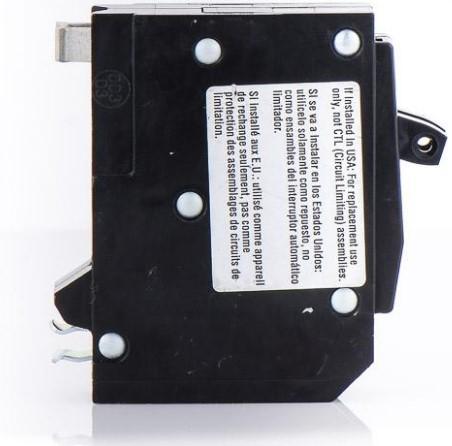

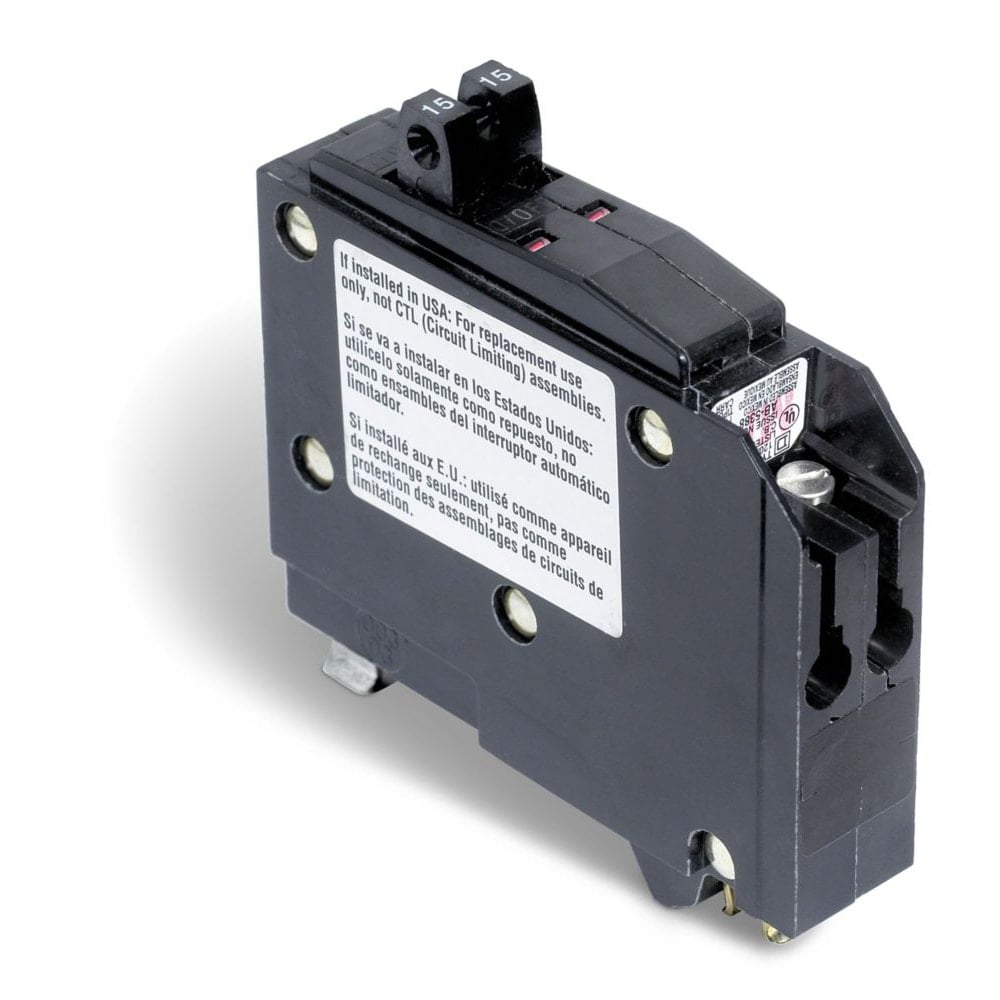

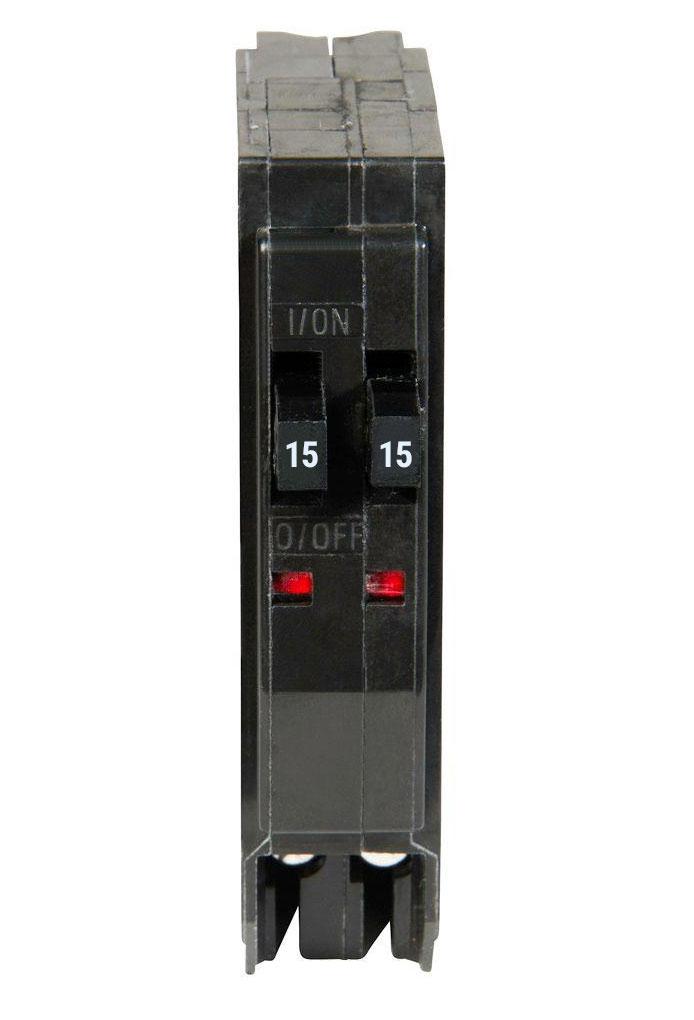

The SCHNEIDER QO1515 is a 1-pole, 15 Amp tandem QO breaker designed for overload and short-circuit protection. It offers two circuits in the space of one and is compatible with Square D QO load centers, CSED devices, and NQOD panel boards. The breaker features a Visi-Trip indicator for easy identification of tripped breakers.
- Plug-on design for easy installation
- Features two 1-pole breakers in the space of a 1-pole QO breaker
- Exclusive VISI-TRIP indicator provides a highly visible red indicator flag
Product Highlights
This tandem circuit breaker is a space-saving solution for adding circuits to your electrical panel. It is UL listed and CSA certified.
Product Information
Standard Information
-
Brand: SCHNEIDER
-
Manufacturer Part Number: QO1515
Technical Specifications
-
Amperage (amps): 15 Amp
-
Breaker Type: Tandem
-
Certifications and Listings: CSA Certified
-
Interruption Type: Standard Trip
-
Mounting Type: Plug-On
-
Package Quantity: 1
-
Power Distribution Features: Trip Indicator
-
Voltage (volts): 120/240 volts
-
Family: QO
-
Tandem: Yes
-
Phase: 1 ph
-
Poles: 1 Pole
-
Connection: Plug-In
-
Interrupting Rating: 10000 Ampere
-
Manufacturer: Schneider Electric
-
Amperage Rating: 15 A
-
Number of Poles: 1
-
Voltage Rating: 120/240 VAC
-
Interrupt Rating: 10 kA
-
Trip Type: Thermal/Magnetic
-
Frequency Rating: 50/60 Hz
-
Connection Type: Pressure Plate
-
Wire Size: 14 to 8 AWG
-
Temperature Rating: 104 deg F
